The KSZ8864CNXIA-TR is a highly integrated Ethernet switch from the reputable Microchip Technology. This robust networking solution is designed to facilitate reliable and efficient data communication in a variety of applications, ranging from industrial automation to consumer electronics.

Key Features

• Port Configuration: The KSZ8864CNXIA-TR features a 4-port switch with two RMII/MII interfaces, providing versatility for multiple network configurations.
• Advanced Switching Capabilities: It supports advanced features such as IEEE 802.1Q VLAN, QoS (Quality of Service) prioritization, and IGMP snooping, enhancing network management and performance.
• Energy Efficient: With Energy Efficient Ethernet (EEE) compliance, this product is designed for power-sensitive applications, reducing energy consumption when network traffic is low.
• Robust Design: The switch is designed to withstand industrial temperature ranges, making it ideal for harsh environments.
• Low Latency: It offers low-latency data transmission, which is critical for real-time applications.
• Compact Footprint: The KSZ8864CNXIA-TR comes in a compact package, saving valuable board space in space-constrained designs.

Applications

The KSZ8864CNXIA-TR is suitable for a wide array of applications, including:

• Industrial Control Systems
• Building Automation
• Home Networking Devices
• Networked Security Systems
• Automotive Infotainment

Technical Specifications

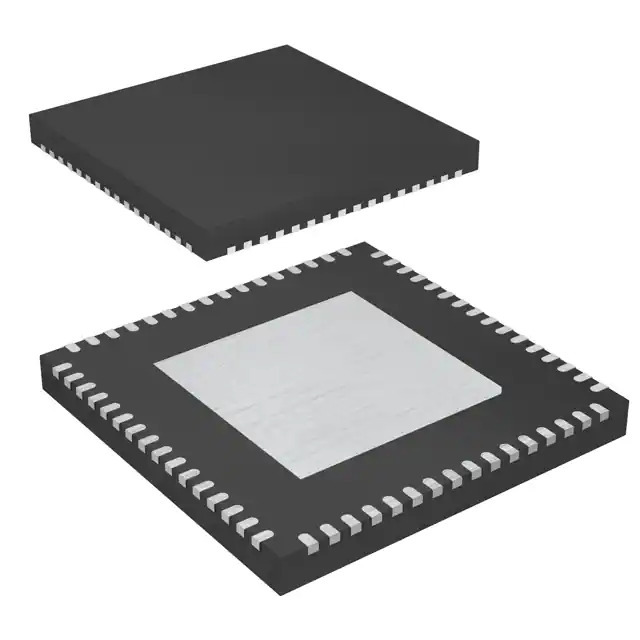

The device operates on a supply voltage of 3.3V and is available in a 64-pin, lead-free QFN package. It is designed for easy implementation into existing systems with minimal configuration required, thanks to its auto-negotiation feature which automatically selects the optimum communication mode.

Ordering Information

The part number KSZ8864CNXIA-TR indicates that the device is provided in tape and reel packaging, which is ideal for automated assembly processes, ensuring streamlined manufacturing and reduced time to market for products incorporating this advanced Ethernet switch.
