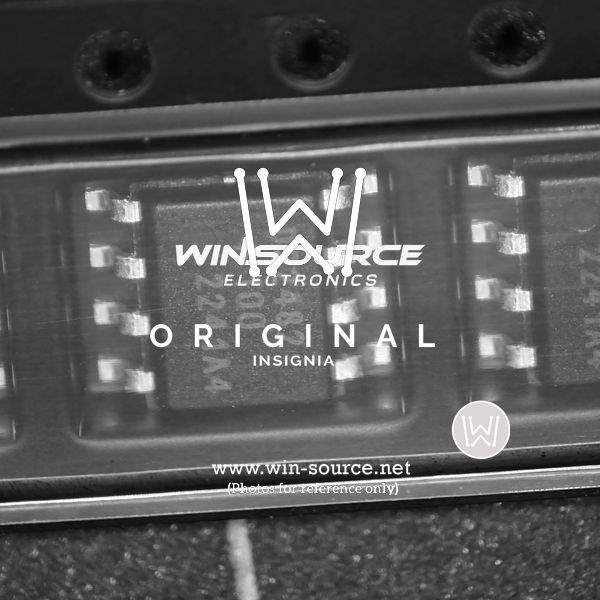

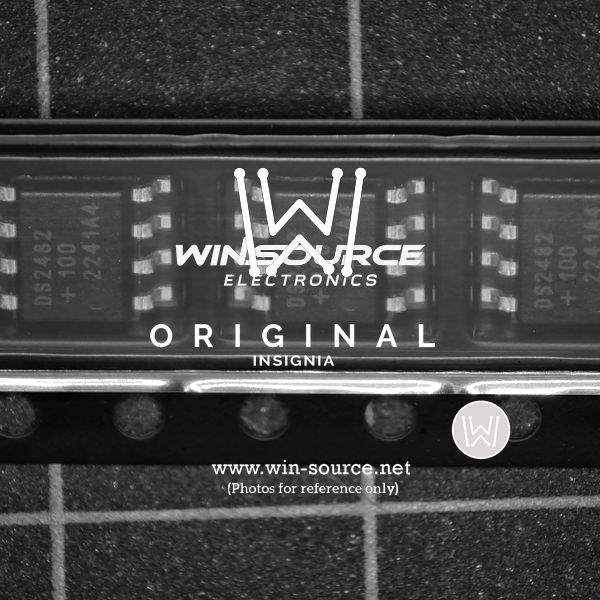

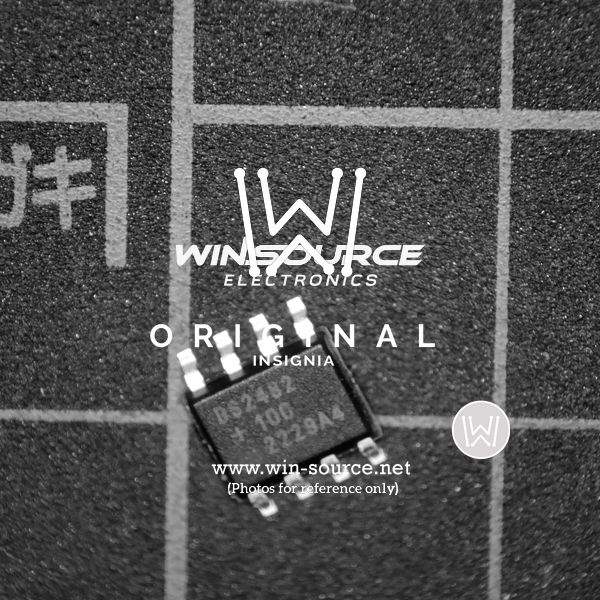

Maxim Integrated's DS2482: 1-Wire® to I²C Bridge Device

The DS2482 from Maxim Integrated is a sophisticated bridge device that provides a seamless interface between a standard I²C bus and any 1-Wire® slave device. It is a versatile and powerful solution for designers looking to integrate 1-Wire devices into applications controlled by microcontrollers with I²C communication capabilities.

At the heart of the DS2482 lies its ability to offload the complex 1-Wire timing generation from the host controller, simplifying 1-Wire communication and saving valuable processor bandwidth. This feature is particularly beneficial in systems where multiple 1-Wire devices are present, or when the host controller is burdened with multiple tasks.

The device supports a wide range of 1-Wire functionalities including overdrive-speed operation, which accelerates communication with 1-Wire devices, making it an ideal choice for applications that require fast data transactions. Additionally, the DS2482 integrates a 1-Wire master with an I²C interface, which can control a single 1-Wire line and perform all 1-Wire functions required by the 1-Wire protocol.

One of the standout features of the DS2482 is its ability to perform 1-Wire line activity with minimal supervision from the host controller. It has an automatic 1-Wire line driver and a programmable I²C address, allowing for multiple DS2482 devices on the same I²C bus. This makes it possible to create a complex network of 1-Wire devices that are easily managed through the I²C interface.

Maxim Integrated has designed the DS2482 with robustness in mind. It includes an adjustable 1-Wire timing recovery feature to enhance performance in environments with varying line characteristics. The device is available in a compact SMT package, which is suitable for space-constrained applications.

Applications for the DS2482 are diverse, ranging from environmental sensing and data logging to authentication and device identification. Its ease of use, combined with the power of the 1-Wire protocol, makes the DS2482 an essential component for any system designer looking to leverage the benefits of 1-Wire devices within an I²C framework.

For more information, please refer to the official datasheet and application notes provided by Maxim Integrated.
