Products specifications

Categories Circuit Protection
Estimated Pruduction Lead Time 29 Weeks

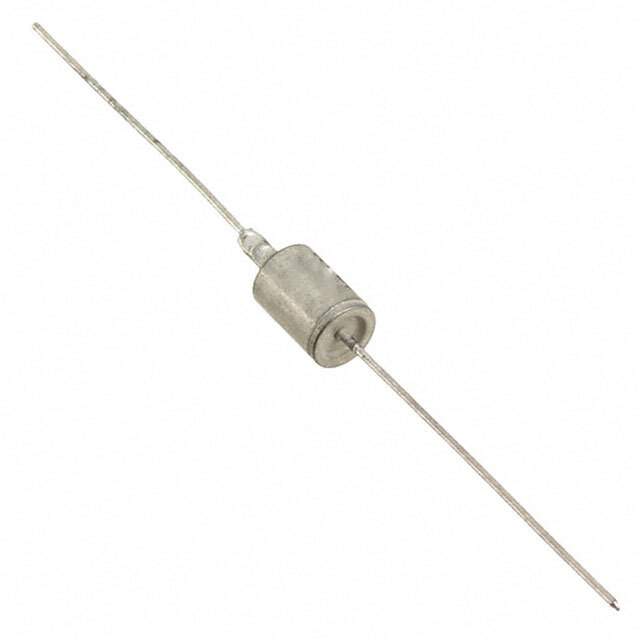

Features 152V Clamp 9.9A Ipp Tvs Diode Through Hole DO-13 (DO-202AA)
Manufacturer Microchip Technology
Series Military, MIL-PRF-19500/507
Package Bulk
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Through Hole
Package DO-13
Case / Package DO-13 (DO-202AA)
Family Name 1N6064
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1086-15896, 1086-15896-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922330-JANTX1N6064A
Ultra Librarian 3D Model Ultra Librarian JANTX1N6064A CAD Model

Description

Product Overview: JANTX1N6064A Diode from Microchip Technology

The JANTX1N6064A is a robust and reliable diode component designed and manufactured by Microchip Technology, a leader in the semiconductor industry. This diode is specifically engineered to meet the stringent requirements of military and aerospace applications, providing high-reliability performance under extreme conditions.

Constructed with Microchip's cutting-edge technology, the JANTX1N6064A is a part of the company's JANTX series, which signifies that it adheres to the Joint Army-Navy Specifications (JAN), a set of standards that ensure the highest level of quality for electronic components used in military-grade equipment. The "X" designation indicates that the device has passed even more rigorous testing, offering an extra layer of assurance for mission-critical systems.

This particular diode offers a range of features that make it an ideal choice for high-demand environments. It is characterized by its fast switching speed, low leakage current, and high surge current capability, making it well-suited for power regulation and protection circuits. The JANTX1N6064A can handle significant voltage and current levels with a repetitive peak reverse voltage (VRRM) and forward continuous current (IF) specified by Microchip's datasheets.

The package of the JANTX1N6064A is designed to provide robust mechanical and thermal stability, ensuring the diode's integrity and longevity, even when exposed to harsh conditions such as high temperatures, mechanical shocks, and vibrations. Its hermetic seal guarantees protection against environmental factors, such as moisture and dust, which could otherwise compromise the component's performance.

Whether it's being used in power supplies, converters, or other sensitive electronic systems, the JANTX1N6064A diode from Microchip Technology offers the reliability and performance needed for the most demanding applications. Its compliance with military specifications means that engineers and designers can incorporate this diode into their designs with confidence, knowing that it will perform reliably over the long term.

For detailed specifications, operational parameters, and application notes, customers are encouraged to refer to the official Microchip Technology datasheets and product documentation available on their website or through authorized distributors.
