Microchip Technology's EQCO30R5.D - High-Speed Coaxial Cable Driver and Receiver

The EQCO30R5.D from Microchip Technology is a state-of-the-art solution designed to transmit high-speed data over coaxial cables. This innovative product is an integral part of modern communication systems, enabling reliable and efficient data transmission at speeds up to 3.0 Gbps. The EQCO30R5.D is perfect for applications that require high bandwidth and robust data integrity over long distances.

Key Features

• High-Speed Data Transmission: Capable of operating at speeds up to 3.0 Gbps, the EQCO30R5.D is designed to meet the demands of high-speed data communication.
• Long Cable Reach: With the ability to transmit data over 100 meters of RG-6/U coaxial cable, it ensures that signal integrity is maintained over long distances without the need for additional repeaters or amplifiers.
• Low Power Consumption: The device is optimized for low power operation, making it an energy-efficient choice for continuous data transmission applications.
• Integrated Cable Driver and Receiver: The EQCO30R5.D combines both a driver and a receiver in a single package, simplifying design and reducing component count.
• Robust Signal Integrity: Features such as adaptive equalization and CDR (Clock Data Recovery) ensure that the data transmitted is accurate and reliable, even in challenging electromagnetic environments.

Applications

The EQCO30R5.D is versatile and can be used in a variety of applications, including:

• High-definition video transmission
• High-speed digital interfaces such as USB, HDMI, and Ethernet
• Industrial control and factory automation
• Automotive infotainment and camera systems
• Security and surveillance systems

Technical Specifications

The EQCO30R5.D offers a range of technical specifications that make it a reliable choice for high-speed data transmission:

• Supply voltage: 3.3V typical
• Operating temperature range: -40°C to +85°C

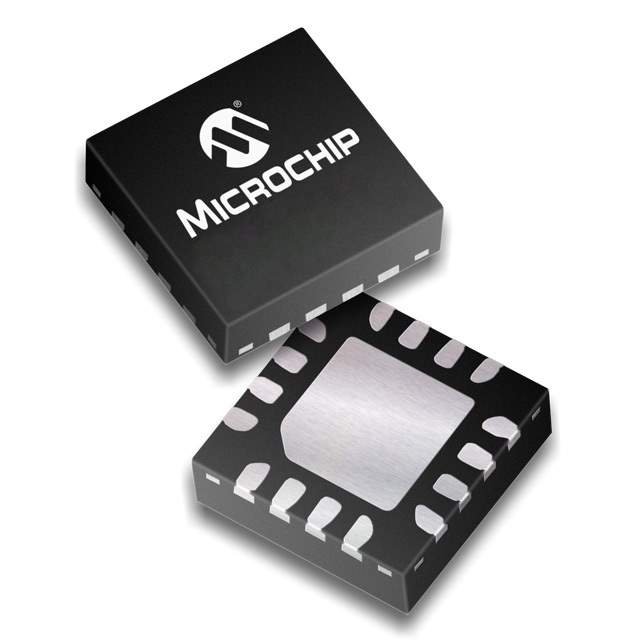

• Package: Compact 16-pin QFN

With its combination of high-speed performance, long reach, and robust signal integrity, the EQCO30R5.D from Microchip Technology is an excellent choice for system designers looking to leverage the advantages of coaxial cable in their digital communication systems.
