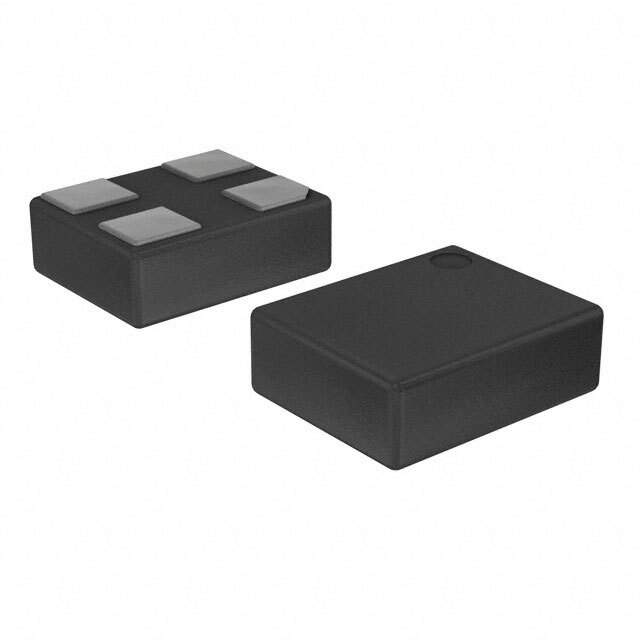

Microchip Technology DSC6021JE1A-002M MEMS Oscillator

The DSC6021JE1A-002M is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator from the renowned manufacturer, Microchip Technology. This high-performance, low-power oscillator is designed to provide precise timing solutions for a wide range of electronic applications, including IoT devices, wearables, and portable electronics.

The DSC6021 series boasts a frequency range of 2.3MHz to 170MHz, making it incredibly versatile for different use cases. The specific model, DSC6021JE1A-002M, operates at a stable frequency of 2MHz. This oscillator is characterized by its exceptional stability and reliability, ensuring that it maintains consistent performance over varying temperatures and environmental conditions.

One of the key features of this oscillator is its ultra-compact footprint. With a package size of just 2.5mm x 2.0mm, it is one of the smallest MEMS oscillators available on the market, which makes it an excellent choice for space-constrained applications. Despite its small size, it does not compromise on performance or durability.

The DSC6021JE1A-002M also offers low power consumption, with a typical operating current of only 3.0mA, making it highly suitable for battery-powered devices where power efficiency is critical. Additionally, it has a fast start-up time of 5ms, which allows for quick wake-up and response times in systems that require rapid state changes.

This oscillator is designed to be highly resistant to mechanical shock and vibration, ensuring uninterrupted service and a longer lifespan for the products it powers. It is also RoHS compliant, adhering to the latest environmental standards and regulations.

To facilitate easy integration into various designs, the DSC6021JE1A-002M is compatible with industry-standard oscillator footprints and requires no external components for operation. It also supports a wide operating temperature range from -40°C to +85°C, offering reliable performance across diverse environmental conditions.

In summary, the Microchip Technology DSC6021JE1A-002M MEMS oscillator is a top-tier timing solution that combines small size, low power consumption, and high reliability, making it an ideal choice for designers looking to enhance the performance and efficiency of their electronic products.
