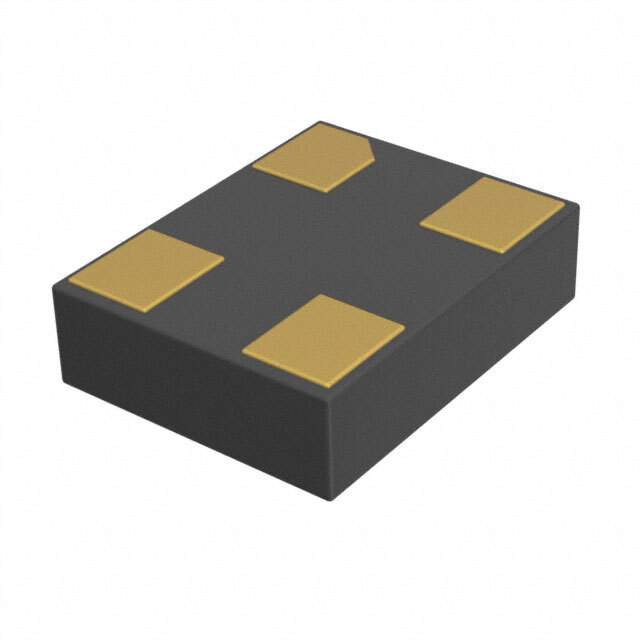

Name: DSA1001DL1-054.0000VAO
Brand: Microchip Technology
SKU: 1344772
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Oscillators
Mfr	Microchip Technology
Series	DSA1001
Package	Bulk
Base Resonator	MEMS
Type	XO (Standard)
Frequency	54 MHz
Function	Standby (Power Down)
Output	CMOS
Voltage - Supply	1.7V ~ 3.6V
Frequency Stability	±50ppm
Temperature Range - Operating	-40°C ~ 105°C
Current - Supply (Max)	10.5mA
Ratings	AEC-Q100
Mounting Type	Surface Mount
Package / Case	4-VDFN
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.035" (0.90mm)
Current - Supply (Disable) (Max)	15µA
Base Product Number	DSA1001
Standard Package	140
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1344772-DSA1001DL1-054.0000VAO
Ultra Librarian 3D Model	Ultra Librarian DSA1001DL1-054.0000VAO CAD Model

Description

Microchip Technology's DSA1001DL1-054.0000VAO is a high-performance, precision oscillator designed to meet the stringent requirements of today's advanced electronic systems. This product is part of Microchip's extensive range of timing solutions that are renowned for their reliability, accuracy, and flexibility.

Technical Specifications

Manufacturer: Microchip Technology
Product Category: Oscillators
Series: DSA1001
Type: Differential Oscillator
Frequency: 54.0000 MHz
Supply Voltage: 2.5 V to 3.3 V
Output Format: LVDS (Low Voltage Differential Signaling)
Stability: ±50 ppm
Operating Temperature Range: -40°C to +85°C
Mounting Type: Surface Mount
Package / Case: 6-SMD, No Lead

Key Features

The DSA1001DL1-054.0000VAO oscillator boasts several key features that make it a top choice for applications requiring precise timing and stable performance. These features include:

High frequency precision with minimal signal distortion.
Low jitter and phase noise characteristics, ensuring signal integrity.
Robust performance in a wide range of environmental conditions.
Compact SMD package suitable for space-constrained applications.
Compliance with RoHS and Reach standards, highlighting Microchip's commitment to environmental sustainability.

Applications

The versatility of the DSA1001DL1-054.0000VAO oscillator makes it suitable for various applications that demand high precision and reliability, including:

Telecommunications
Networking equipment (routers, switches, etc.)
Server and data storage systems
Industrial control systems
Test and measurement equipment

Ordering Information

For more information or to place an order for the DSA1001DL1-054.0000VAO, please contact Microchip Technology or an authorized distributor. Ensure to reference the complete product code to facilitate accurate processing of your order.
