Same model may have multiple batches, images only for reference.

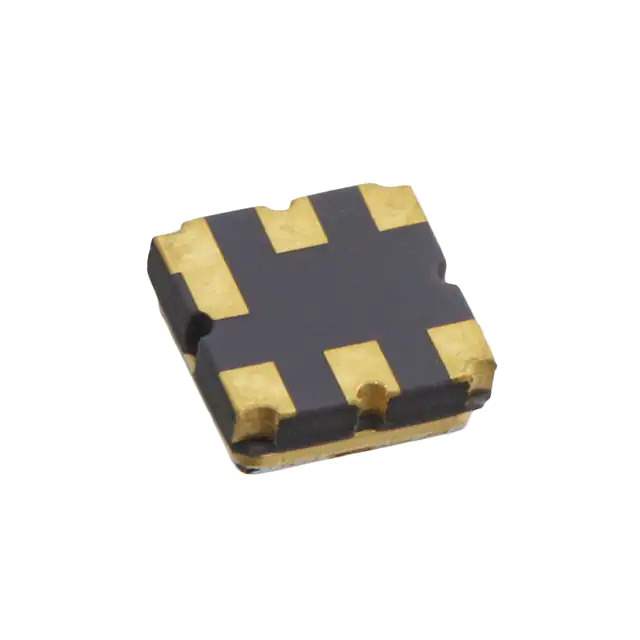

B39821B3836U410W9 Real Image
Same model may have multiple batches, images only for reference.

B39821B3836U410W9

Part No B39821B3836U410W9
Manufacturer Qualcomm
Catalog SAW Filters
Description FILTER SAW 815.5MHZ LOWLOSS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr Qualcomm
Package Tape & Reel
Product Status Obsolete
Frequency - Center 815.5MHz
Bandwidth 19MHz
Insertion Loss 2.7dB
Applications iDEN Systems
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Standard Package 9,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 744643-B39821B3836U410W9
Ultra Librarian 3D Model Ultra Librarian B39821B3836U410W9 CAD Model

Description

The 744643-B39821B3836U410W9 is a surface mount SAW filter designed for iDEN systems.

  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height: 0.043" (1.10mm)
  • Insertion Loss: 2.7dB
  • Bandwidth: 19MHz
  • Center Frequency: 815.5MHz
  • Package Type: Tape and reel
  • Standard Package: 9,000 pieces
  • ECCN: EAR99
  • MSL Level: 1
  • Status: Obsolete
