Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Microchip Technology
Packaging Tube
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) (per Diode) 60A
Voltage - Forward (Vf) (Max) @ If 2.8 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 235 ns
Current - Reverse Leakage @ Vr 100 µA @ 1000 V
Mounting Chassis Mount

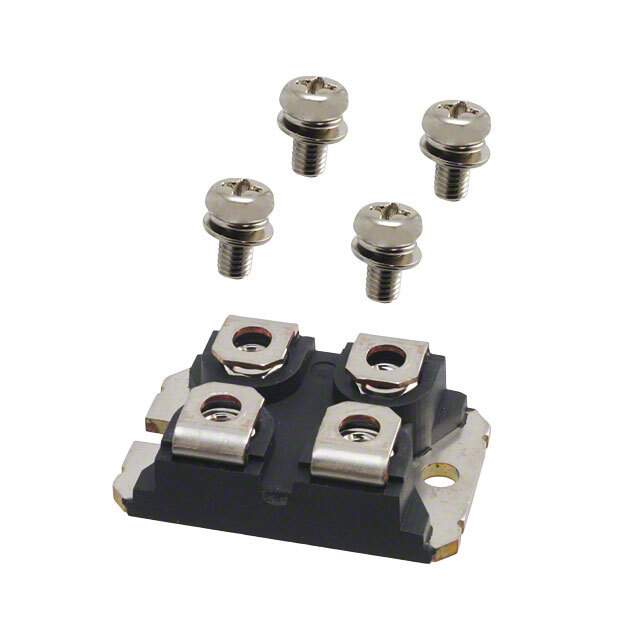

Case / Package SOT-227-4, miniBLOC
Supplier Device Package ISOTOP®
Base Product Number APT2X60
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 1
Win Source Part Number 1325752-APT2X60DQ100J
Ultra Librarian 3D Model Ultra Librarian APT2X60DQ100J CAD Model

Description

Microchip Technology's APT2X60DQ100J Power MOSFET

Introducing the APT2X60DQ100J, a state-of-the-art Power MOSFET brought to you by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This MOSFET is designed to cater to a wide array of applications, ranging from power supply units to motor drives, ensuring efficiency and reliability.

Key Features

  • High Voltage Tolerance: The APT2X60DQ100J operates at a maximum voltage of 600V, making it suitable for high-voltage applications, and providing a wide safety margin for fluctuating conditions.
  • Low On-Resistance: With an exceptionally low R<sub>DS(on), this MOSFET minimizes on-state losses, leading to higher efficiency and lower operating temperatures in your circuits.
  • Fast Switching Speed: The device's fast switching capabilities ensure minimal losses during the transition from on to off states and vice versa, which is critical for high-frequency applications.
  • Robust Package: Encased in a DQ100J package, the APT2X60DQ100J is designed to withstand harsh environments and is easy to mount on a variety of PCBs.
  • Low Gate Charge: The reduced gate charge of the APT2X60DQ100J allows for lower switching energies, making it easier to drive and reducing the stress on associated driving circuitry.

Applications

The versatility of the APT2X60DQ100J MOSFET makes it an excellent choice for a multitude of applications. It is ideal for use in switched-mode power supplies (SMPS), where efficiency and reliability are paramount. Additionally, it's well-suited for power inverters and converters, motor control circuits, and other power management tasks that require robust performance.

Quality and Reliability

Microchip Technology is committed to delivering products that meet the highest standards of quality and reliability. The APT2X60DQ100J is no exception, as it is built to provide consistent performance and longevity, even in demanding situations. Whether you are designing for industrial, commercial, or high-tech applications, this MOSFET will help you achieve your design goals with confidence.

For detailed specifications, application notes, and additional resources, please refer to the official Microchip Technology website or contact their customer support for personalized assistance.
