Same model may have multiple batches, images only for reference.

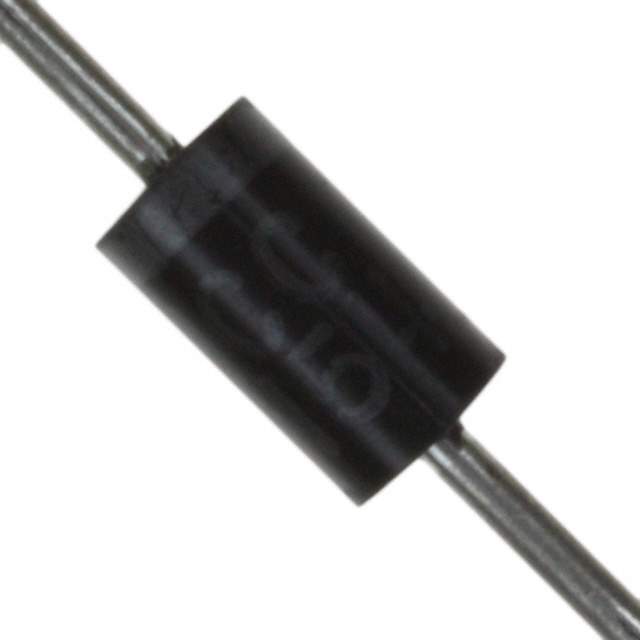

SF55-AP Real Image
Same model may have multiple batches, images only for reference.

SF55-AP

Part No SF55-AP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Datasheet
SF55-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Box (TB)
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) 5A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Capacitance @ Vr, F 45pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 1,200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282475-SF55-AP
Ultra Librarian 3D Model Ultra Librarian SF55-AP CAD Model

Description

The SF55-AP is a fast recovery rectifier diode with a voltage rating of 300V and an average rectified current of 5A.

  • Reverse Recovery Time: 35 ns
  • Capacitance: 45pF @ 4V, 1MHz
  • Package: DO-201AD, Axial package
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -55°C to 150°C
