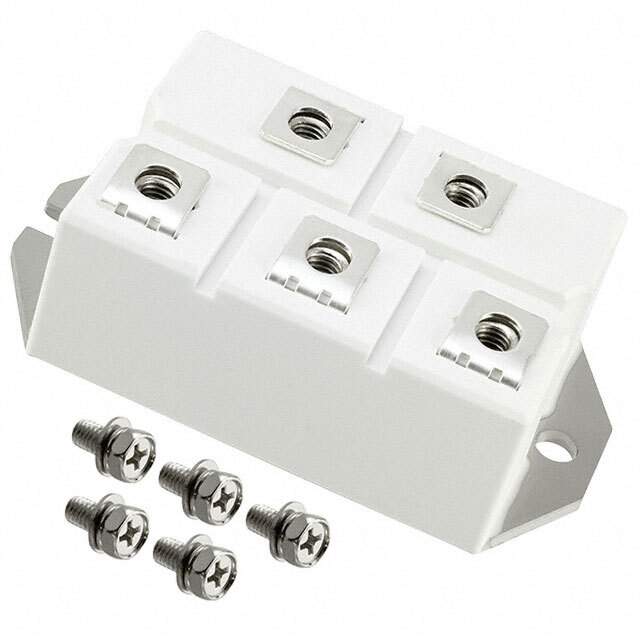

MD160S16M3-BP Real Image
Same model may have multiple batches, images only for reference.

MD160S16M3-BP

Part No MD160S16M3-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Datasheet
MD160S16M3-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Micro Commercial Co
Package Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 160 A
Voltage - Forward (Vf) (Max) @ If 1.75 V @ 300 A
Current - Reverse Leakage @ Vr 500 µA @ 1600 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case M3
Supplier Device Package M3
Base Product Number MD160S16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1316188-MD160S16M3-BP
Ultra Librarian 3D Model Ultra Librarian MD160S16M3-BP CAD Model

Description

The MD160S16M3-BP diode bridge rectifier is a standard three-phase technology product from Micro Commercial Co. with a current average rectified (Io) of 160 A.

  • Current Average Rectified (Io): 160 A
  • Voltage Forward (Vf) (Max) @ If: 1.75 V @ 300 A
  • Current Reverse Leakage @ Vr: 500 µA @ 1600 V
  • Voltage Peak Reverse (Max): 1.6 kV
  • Mounting Type: Chassis Mount
  • Package/Case: M3
  • Supplier Device Package: M3
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.10.0080
  • Base Product Number: MD160S16
