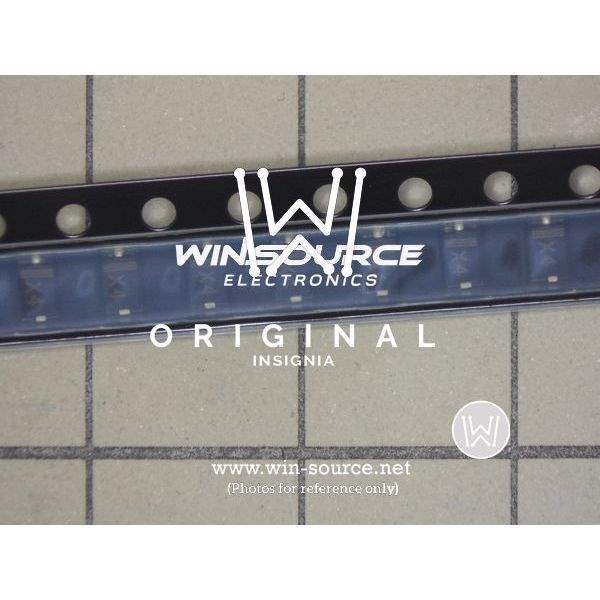

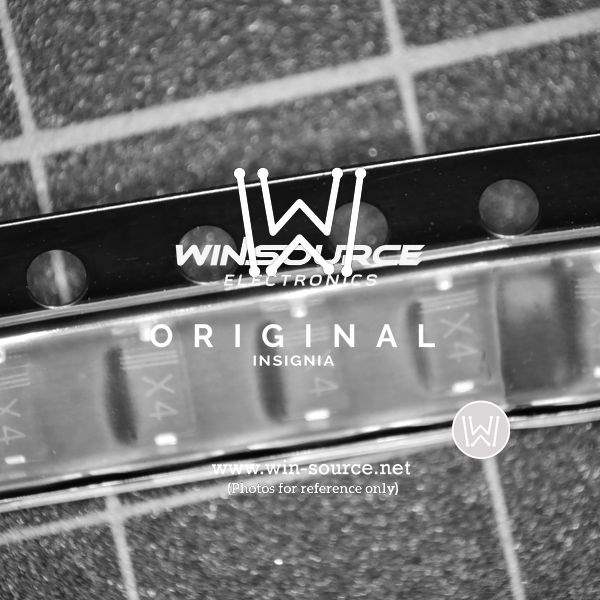

MBRX140-TP Micro Commercial Co MBRX140-TP Real Image MBRX140-TP real image
Same model may have multiple batches, images only for reference.
MBRX140-TP Micro Commercial Co MBRX140-TP Real Image MBRX140-TP real image
MBRX140-TP Micro Commercial Co MBRX140-TP Real Image MBRX140-TP real image
Same model may have multiple batches, images only for reference.

MBRX140-TP

Part No MBRX140-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 40V 1A 2-Pin SOD-123 T/R / DIODE SCHOTTKY 40V 1A SOD123
Datasheet
MBRX140-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 300μA @ 40V
Mounting SMD (SMT)
Case / Package SOD-123
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 022472-MBRX140-TP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name MBRX140
Introduction Date March 02, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MBRX140-TP CAD Model

Description

The Micro Commercial Co 022472-MBRX140-TP is a Schottky diode that comes in a SOD-123 package and is designed to operate in the temperature range of -55°C to 125°C.

  • Package: SOD-123
  • Temperature Range: -55°C to 125°C
  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 1A
  • Forward Voltage: 550mV @ 1A
  • Reverse Leakage Current: 300μA @ 40V
  • Supply and Demand: Balanced
  • Reel: 3,000 pieces
