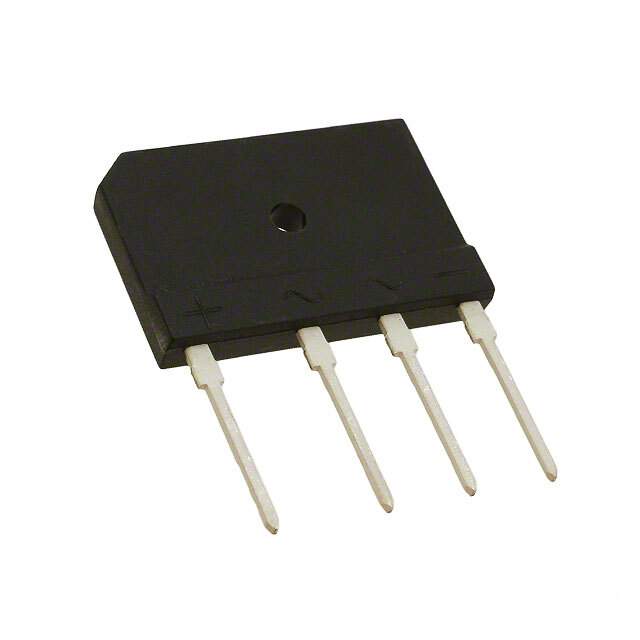

GBJ1004-BP Real Image
Same model may have multiple batches, images only for reference.

GBJ1004-BP

Part No GBJ1004-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 10A 400V GBJ / Diode Rectifier Bridge Single 400V 10A 4-Pin(4+Tab) Case GBJ Bulk/Tube
Datasheet
GBJ1004-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.05V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBJ
Manufacturer Package GBJ
Win Source Part Number 774981-GBJ1004-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 750
Family Name GBJ1004
Introduction Date October 10, 1996
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian GBJ1004-BP CAD Model

Description

The GBJ1004-BP is a single-phase standard diode from Micro Commercial Co.

  • Forward Voltage: 1.05V @ 5A
  • Peak Reverse Voltage: 400V
  • Mounting Style: Through-hole
  • Operating Temperature Range: -55°C to 150°C
  • Package: 4-SIP GBJ
  • Current Average Rectified (Io): 10A
  • Current Reverse Leakage: 10μA @ 400V
  • Halogen Free: Yes
  • Popularity: Medium
  • Estimated EOL Date: 2029
