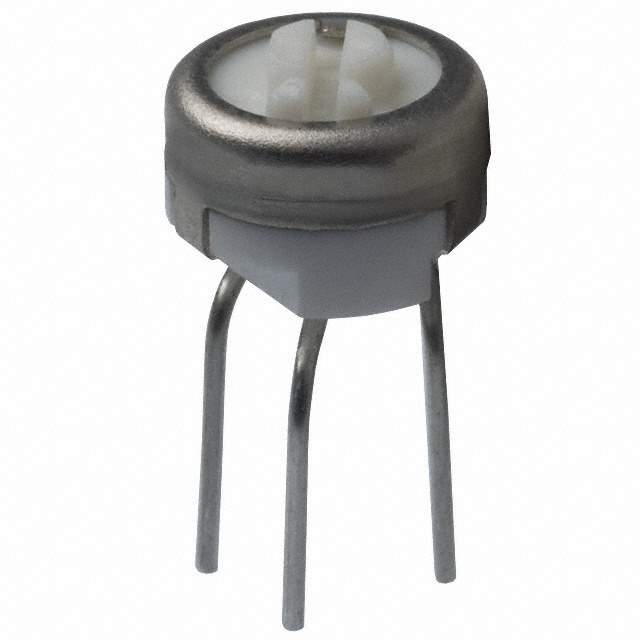

3329P-1-105LF Real Image
Same model may have multiple batches, images only for reference.

3329P-1-105LF

Part No 3329P-1-105LF
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 1M OHM 0.5W PC PIN TOP / 1 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3329P-1-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3329 - Sealed
Package Tube
Resistance 1 mOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Dimension Round - 0.250" Dia (6.35mm)
Base Product Number 3329P
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3329P1105LF,3329P-1-105LF-ND,3329P-105LF
Standard Package 100
Win Source Part Number 1038138-3329P-1-105LF
Ultra Librarian 3D Model Ultra Librarian 3329P-1-105LF CAD Model

Description

The Bourns Trimpot® 3329 - Sealed series is a trimmer potentiometer with a resistance of 1 mOhms.

  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.5W, 1/2W
  • Adjustment Type: top adjustment
  • Mounting: through-hole
  • Dimension: round dimension of 0.250" Dia (6.35mm)
  • Height of Seated (max): 0.185" (4.69mm)
  • Alternative Parts: Bourns 3386P-1-105LF, 3362P-1-105LF, 3362W-1-105LF, 72PR1MEGLF, M63X105KB40, and T73YE105KT20
  • ECCN: EAR99
  • REACH: REACH affected
  • HTSUS: 8533.40.8050
