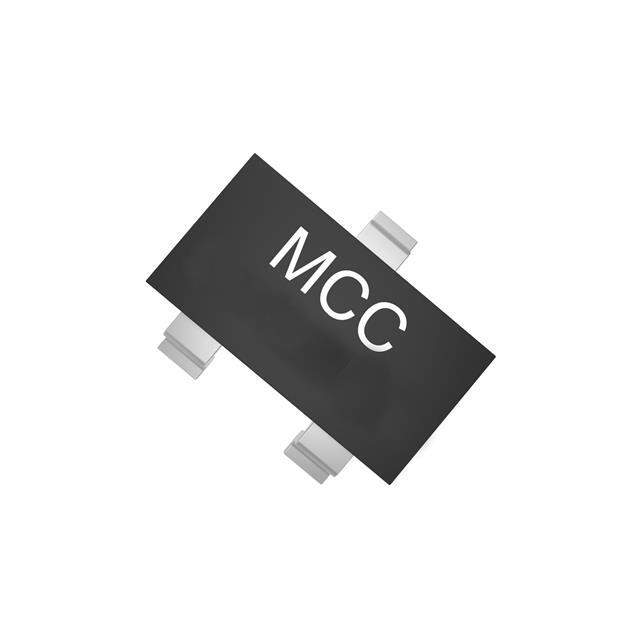

BAT54C-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54C-TP

Part No BAT54C-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT23
Datasheet
BAT54C-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 010985-BAT54C-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAT54C-TP CAD Model

Description

Product Overview:

BAT54C-TP is a dual Schottky diode offering rapid switching and low forward voltage. It’s tailored to meet the demands of modern electronic circuits, providing efficiency and reliability.

Applications:

  • Switching Circuits
  • Frequency Converters
  • Temperature Sensors
  • Power Supply Units

Features and Benefits:

  • Fast Reverse Recovery Time to Support High-Frequency Applications
  • Low Voltage Drop Minimizing Heat Generation
  • Dual Configuration for Greater Versatility
  • Compact SOT-23 Packaging

Additional Details:

This component is well-suited for high-speed switching applications, combining compact design with high performance for diverse electronic needs.
