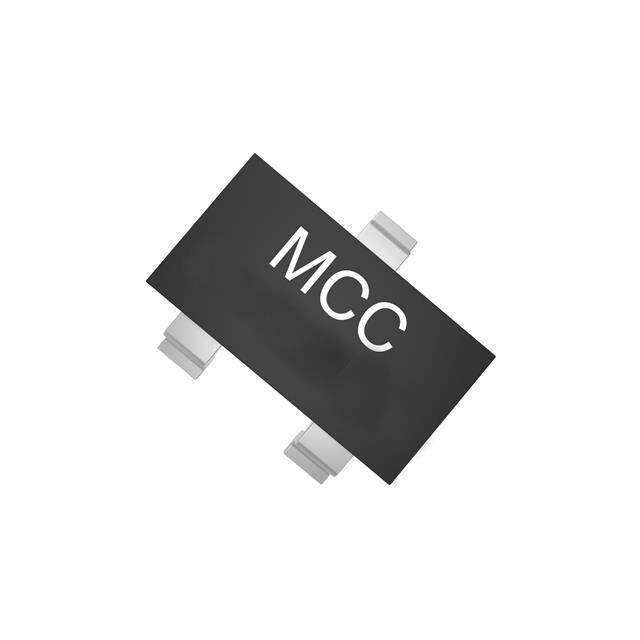

BAT54A-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54A-TP

Part No BAT54A-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT23 / Diode Small Signal Schottky 30V 0.2A 3-Pin SOT-23 T/R
Datasheet
BAT54A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel package
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Maximum) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -55°C ~ 125°C
Mounting SMD
Package TO-236-3, SC-59, SOT-23-3
Manufacturer Package SOT-23
Win Source Part Number 769686-BAT54A-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name BAT54A
Introduction Date February 19, 1997
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BAT54A-TP CAD Model

Description

The BAT54A-TP is a Schottky diode from Micro Commercial Co..

  • Diode Configuration: 1 pair common anode
  • Maximum Reverse Voltage: 30V
  • Current Rating: 200mA
  • Forward Voltage: 1V @ 100mA
  • Reverse Recovery Time: 5ns
  • Reverse Leakage: 2µA @ 25V
  • Package: TO-236-3, SC-59, SOT-23-3
  • Mounting Type: SMD
  • Operating Temperature Range: -55°C - 125°C
  • Reel Package Quantity: 3k pcs
  • Halogen-Free: Yes
