Same model may have multiple batches, images only for reference.

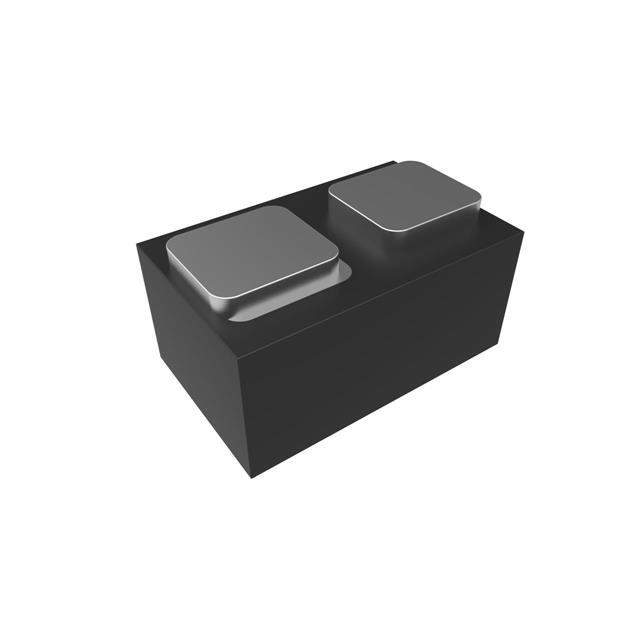

BAS70LP-TP Real Image
Same model may have multiple batches, images only for reference.

BAS70LP-TP

Part No BAS70LP-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 70V 70MA SOD882
Datasheet
BAS70LP-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Schottky 70 V 70mA (DC) Surface Mount SOD-882
Manufacturer Micro Commercial Co
Package Reel - TR
Part Status Obsolete
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package SOD-882
Case / Package SOD-882
Family Name BAS70LP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAS70LP-TPMSTR, BAS70LP-TPMSTR-ND, 353-BAS70LP-TPCT, 353-BAS70LP-TPDKR, -1142-BAS70LP-TPDKR, BAS70LP-TPMSCT-ND, BAS70LP-TPMSDKR, BAS70LP-TPMSTR-NDL, -1142-BAS70LP-TPTR, BAS70LP-TPMSCT, BAS70LPTP, -1142-BAS70LP-TPCT, BAS70LP-TPMSDKR-ND, 353-BAS70LP-TPTR, Q8738369
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912834-BAS70LP-TP
Ultra Librarian 3D Model Ultra Librarian BAS70LP-TP CAD Model

Description

The Micro Commercial Co BAS70LP is a Schottky diode with a maximum voltage rating of 70V and a maximum current rating of 70mA.

  • Application: Designed for small signal applications with a speed of less than 200mA (Io)
  • Mounting: Surface
  • Package: SOD-882
  • Shipping: Reel
  • Family: BAS70LP family of discrete semiconductor products
  • Status: Obsolete and has been replaced by the BAS70LP-TPMSTR, BAS70LP-TPMSTR-ND, 353-BAS70LP-TPCT, 353-BAS70LP-TPDKR, -1142-BAS70LP-TPDKR, BAS70LP-TPMSCT-ND, BAS70LP-TPMSDKR, BAS70LP-TPMSTR-NDL, -1142-BAS70LP-TPTR, BAS70LP-TPMSCT, BAS70LPTP, -1142-BAS70LP-TPCT, BAS70LP-TPMSDKR-ND, 353-BAS70LP-TPTR, and Q8738369.
