Same model may have multiple batches, images only for reference.

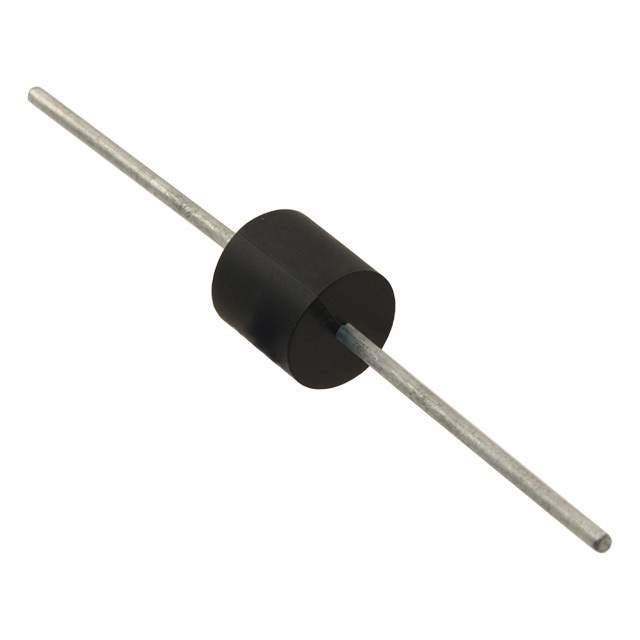

6A05-TP Real Image
Same model may have multiple batches, images only for reference.

6A05-TP

Part No 6A05-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 6A R6 / Diode Standard 50 V 6A Through Hole R-6
Datasheet
6A05-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Not For New Designs
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 6 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 50 V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case R-6, Axial
Supplier Device Package R-6
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number 6A05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 6A05-TPMSCT,6A05-TPMSDKR-ND,6A05-TPMSDKRINACTIVE,6A05-TPMSTR,6A05TP,6A05-TPMSDKR
Standard Package 500
Win Source Part Number 1160841-6A05-TP
Ultra Librarian 3D Model Ultra Librarian 6A05-TP CAD Model

Description

The Micro Commercial Co 6A05 is a standard recovery diode that is ideal for use in rectification circuits.

  • Maximum Reverse Voltage: 50V
  • Average Rectified Current: 6A
  • Forward Voltage: 950mV @ 6A
  • Reverse Leakage Current: 10 microamperes @ 50V
  • Capacitance: 150 picofarads @ 4V and 1MHz
  • Operating Temperature Range: -55 to 125 degrees Celsius
  • Package: R-6 Axial
  • Packaging: Tape and Reel / Cut Tape
  • Manufacturer: Micro Commercial Co
