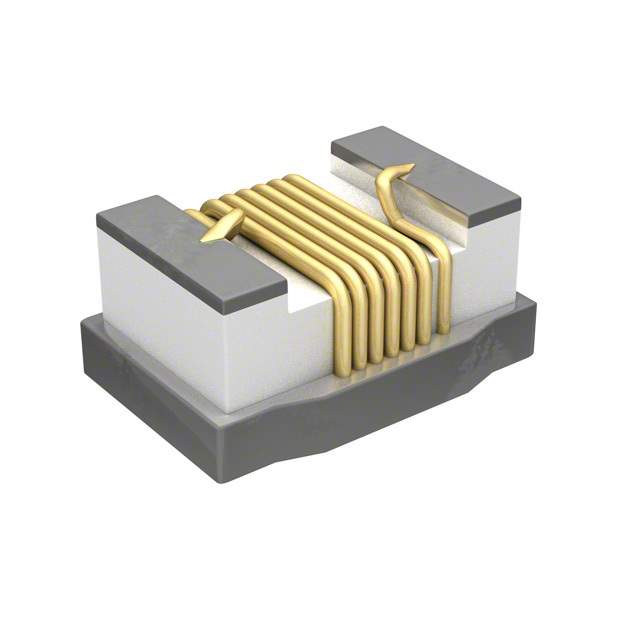

36502AR56JTDG

Name: 36502AR56JTDG
Brand: TE Connectivity
SKU: 1038189
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	36502AR56JTDG
Manufacturer	TE Connectivity
Catalog	Fixed Inductors
Description	FIXED IND 560NH 210MA 1.9OHM SMD / 560 nH Unshielded Wirewound Inductor 210 mA 1.9Ohm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TE Connectivity Passive Product
Series	3650, Sigma Inductors
Package	Tape & Reel
Type	Wirewound
Inductance	560 nH
Tolerance	±5%
Current Rating (Amps)	210 mA
Shielding	Unshielded
DC Resistance (DCR)	1.9Ohm Max
Q @ Freq	23 @ 50MHz
Frequency - Self Resonant	340MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Dimension	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max)	0.060" (1.52mm)
Base Product Number	36502
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	616241132,A103767DKR,6-1624113-2,A103767CT,A103767TR
Standard Package	2,000
Win Source Part Number	1038189-36502AR56JTDG
Ultra Librarian 3D Model	Ultra Librarian 36502AR56JTDG CAD Model

Alternative Products

Description

This fixed inductor is a Sigma Inductors 3650 series wirewound type inductor manufactured by TE Connectivity Passive Product.

Inductance: 560 nH
Shielding: Unshielded
Packaging: Tape & Reel
Height - Seated (Max): 0.060" (1.52mm)
Standard Package: 2,000
Mounting: SMD (SMT)
Tolerance: ±5%
Q @ Freq: 23 @ 50MHz
Frequency - Self-Resonant: 340MHz
Package/Case: Nonstandard
DC Resistance (DCR): 1.9Ohm Max
Supplier Device Package: 0805 (2012 Metric)
Temperature Range: -40°C ~ 125°C
Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
MSL Level: 1 (Unlimited)
Current Rating (Amps): 210 mA
Inductance Frequency - Test: 250 MHz
REACH: Vendor Undefined
HTSUS: 8504.50.8000
