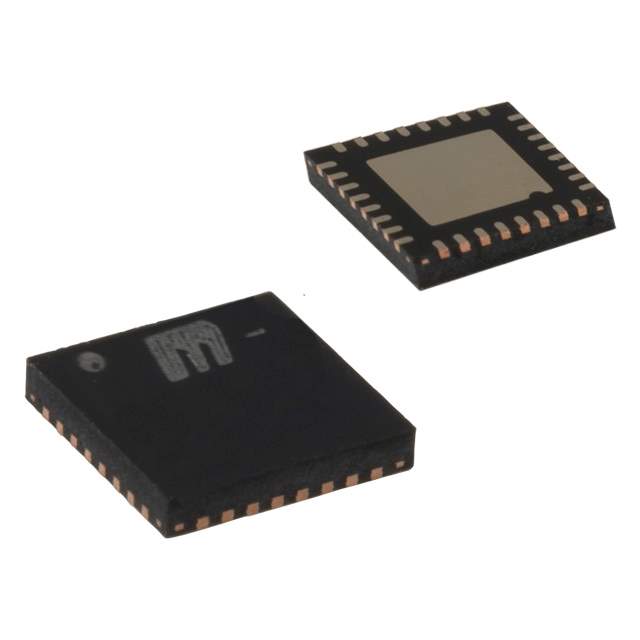

MICRF505BML TR Real Image
Same model may have multiple batches, images only for reference.

MICRF505BML TR

Part No MICRF505BML TR
Manufacturer Micrel
Catalog RF Transceiver ICs
Description IC RF TXRX ISM
Datasheet
MICRF505BML TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Reel - TR
Type TxRx Only
RF Family/Standard General ISM
Modulation FSK
Frequency 850MHz to 950MHz
Data Rate (Max) 200kbps
Power - Output 10dBm
Sensitivity -111dBm
Serial Interfaces SPI
Supply Voltage - Operating 2 V to 2.5 V
Current - Receiving 8.6mA to 13.5mA
Current - Transmitting 14mA to 28mA
Temperature Range - Operating -40°C to 85°C
Dimension 32-VFQFN Exposed Pad, 32-MLF
Win Source Part Number 231132-MICRF505BML TR
Ultra Librarian 3D Model Ultra Librarian MICRF505BML TR CAD Model

Description

The Microchip Technology MICRF505BML TR is a TxRx Only type, general ISM RF transceiver with a frequency range of 850MHz to 950MHz.

  • Power Output: 10dBm
  • Sensitivity: -111dBm
  • Data Rate: up to 200kbps
  • Modulation: FSK
  • Current Consumption Receiving: 8.6mA to 13.5mA
  • Current Consumption Transmitting: 14mA to 28mA
  • Package: 32-VFQFN Exposed Pad or 32-MLF
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 2V to 2.5V
  • Manufacturer: Microchip Technology
