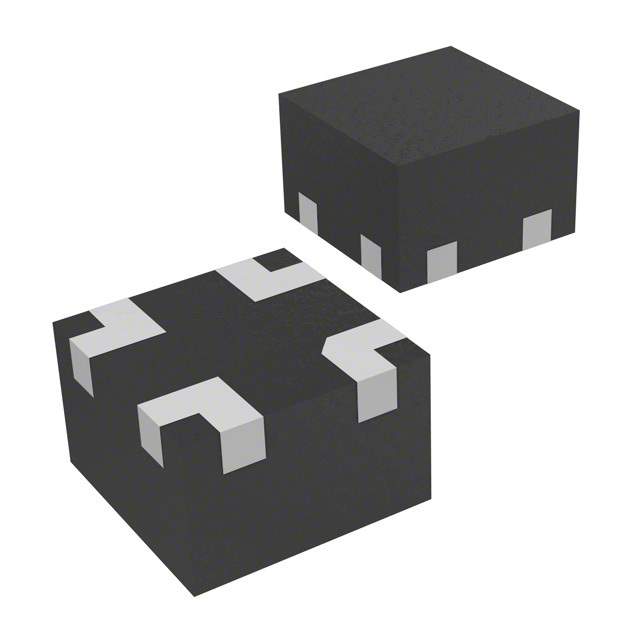

The MIC94085YFT is a high-side load switch manufactured by Micrel (now Microchip Technology). It is designed to control power to a load by switching the high-side voltage, offering features like current limiting and thermal protection. This makes it suitable for applications where reliable and controlled power switching is required.

Applications

• Portable Devices: Power management for smartphones, tablets, and other portable electronics.
• USB Power Switching: Controlling power to USB ports and devices.
• Peripheral Device Power Control: Switching power to peripherals like sensors and memory devices.
• Hot-Swap Applications: Safely connecting and disconnecting devices from a live system.
• Power Distribution: Controlling power distribution in electronic systems.
• Solid State Drives (SSDs): Powering and protecting SSDs in computers and storage systems.

Features

• High-Side Switching: Controls power by switching the high-side voltage.
• Low On-Resistance: Minimizes voltage drop and power loss during conduction.
• Current Limiting: Protects the load and switch from overcurrent conditions.
• Thermal Shutdown Protection: Shuts down the switch when it overheats.
• Enable Control: Allows for external control of the switch.
• Small Package: Available in a compact package for space-constrained applications.

Benefits

• Improved System Reliability: Protection features prevent damage from overcurrent and overheating.
• Enhanced Power Efficiency: Low on-resistance minimizes power loss.
• Simplified Design: Requires minimal external components.
• Compact Footprint: Enables smaller and lighter electronic devices.
• Safe Hot-Swapping: Allows safe connection and disconnection of devices.

Additional Details

The MIC94085YFT is designed for ease of use and reliable performance in a variety of power switching applications. Its integrated protection features enhance system robustness. For detailed specifications and application information, refer to the Microchip Technology (formerly Micrel) datasheet for the MIC94085YFT.
