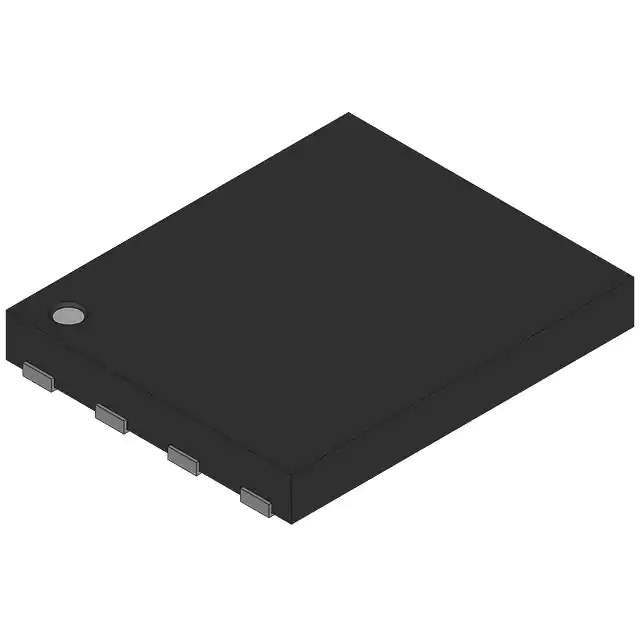

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Micrel
Package Bulk
Product Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 2.5V
Voltage - Supply (Max) 10V
Voltage - Output 15V
Current - Output / Channel 750mA (Switch)
Frequency 1.6MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad, 8-MLF®
Supplier Device Package 8-MLF® (2x2)
Base Product Number MIC2292
Standard Package 460 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 639520-MIC2292-15YML
Ultra Librarian 3D Model Ultra Librarian MIC2292-15YML CAD Model

Description

The Micrel 639520-MIC2292-15YML is a DC-DC regulator specifically designed for LED driver applications.

  • Output Voltage: 15V
  • Maximum Output Current: 750mA
  • Operating Frequency: 1.6MHz
  • Topology: Step-up (boost)
  • Output: Single
  • Package Type: 8-VFDFN Exposed Pad, 8-MLF®
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 125°C
  • Dimming: PWM dimming
  • Application: LED backlight applications
