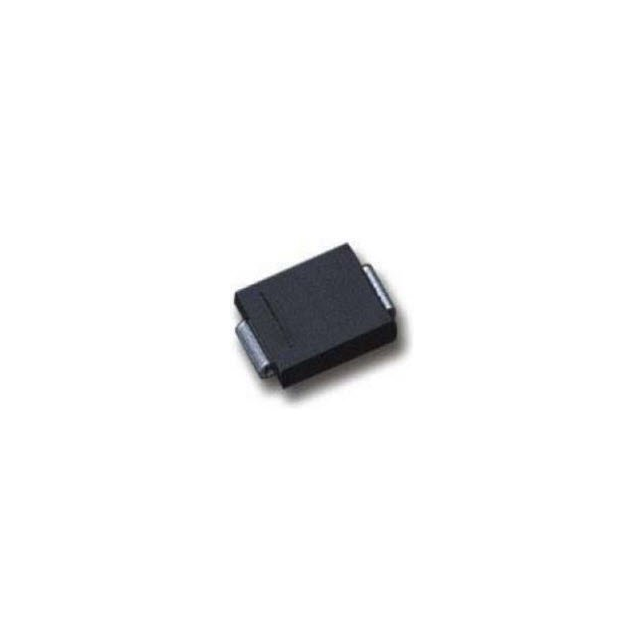

SMDJ24C

Part No SMDJ24C
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMDJ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 43V
Current - Peak Pulse (10/1000µs) 69.77A
Power - Peak Pulse 3000W (3kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMDJ24CTR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299903-SMDJ24C
Ultra Librarian 3D Model Ultra Librarian SMDJ24C CAD Model

Description

The SMDJ24C is a TVS diode that has a zener type and a voltage rating of 24V.

  • Voltage Breakdown: 26.7V
  • Voltage Clamping: 43V @ Ipp
  • Power Peak Pulse: 3000W (3kW)
  • Channel: Bidirectional
  • Current Peak Pulse: 69.77A (10/1000µs)
  • Package: Tape and Reel
  • Package/Case: DO-214AB (SMC)
  • Temperature Range: -55°C to 150°C
  • Manufacturer: Meritek
