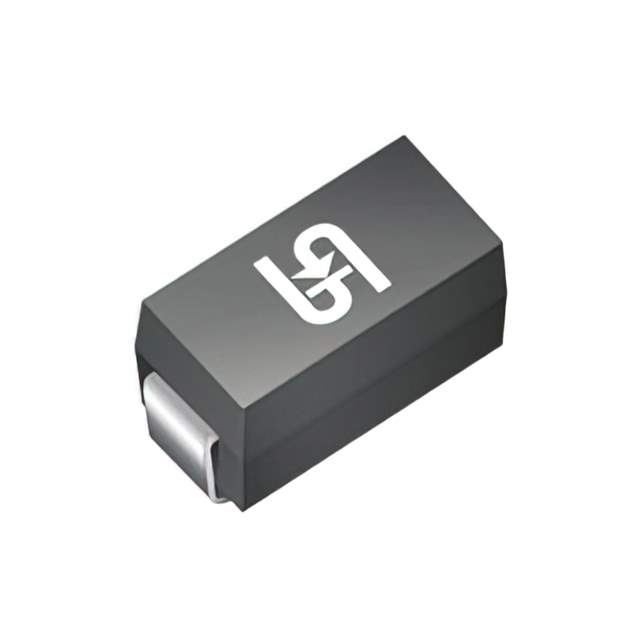

SMBJ40 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMBJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 71.4V
Current - Peak Pulse (10/1000µs) 8.4A
Power - Peak Pulse 600W
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AA (SMB)
Other Names 2997-SMBJ40TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299940-SMBJ40
Ultra Librarian 3D Model Ultra Librarian SMBJ40 CAD Model

Description

The Meritek SMBJ40 is a Zener type TVS diode that is perfect for general-purpose applications.

  • Reverse Standoff Voltage: 40V
  • Breakdown Voltage: 44.4V
  • Package: Tape and reel
  • Standard Package: 20
  • Power Peak Pulse: 600W
  • Voltage Clamping @ Ipp: 71.4V
  • Package/Case: DO-214AA (SMB)
  • Mounting: SMD (SMT)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
