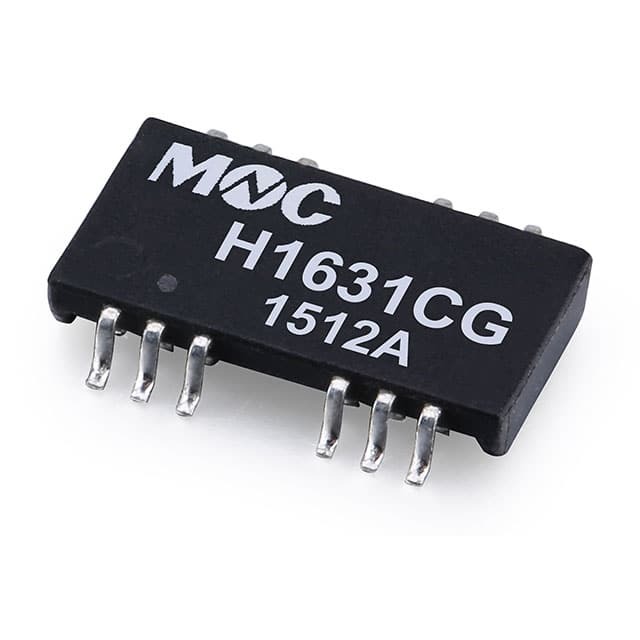

H1631CG
Same model may have multiple batches, images only for reference.

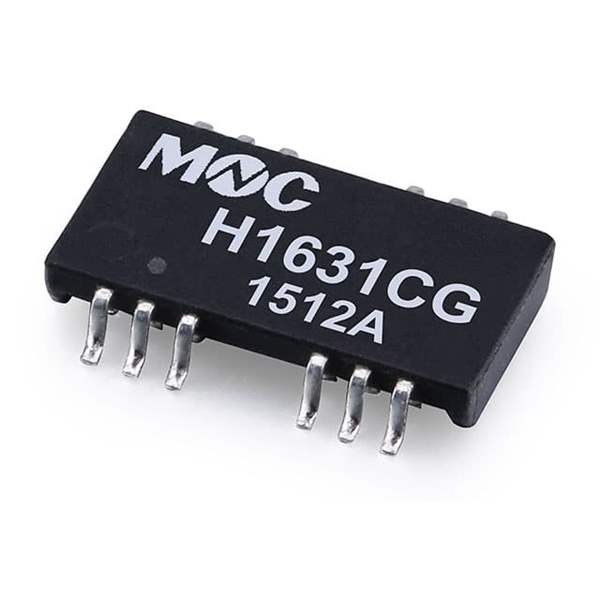

H1631CG

Part No H1631CG
Manufacturer Mentech Technology USA Inc.
Catalog Pulse Transformers
Description SINGLE LAN XFMR 10/100 BASE-T / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet
H1631CG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mentech Technology USA Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.520" L x 0.299" W (13.20mm x 7.60mm)
Height - Seated (Max) 0.098" (2.50mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.9000
Win Source Part Number 873151-H1631CG
Ultra Librarian 3D Model Ultra Librarian H1631CG CAD Model

Description

The 873151-H1631CG is a pulse transformer designed for use in transformers for LAN 10/100 Base-T applications. Bold text: 873151-H1631CG manufactured by Mentech Technology USA Inc., this pulse transformer is part of their active product lineup.

  • Application: LAN 10/100 Base-T
  • Size / Dimension: 0.520" L x 0.299" W (13.20mm x 7.60mm)
  • Height - Seated (Max): 0.098" (2.50mm)
  • Inductance: 350µH
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C ~ 70°C
  • Packaging: Tape & Reel (TR)
  • Standard Package: 5 pcs
