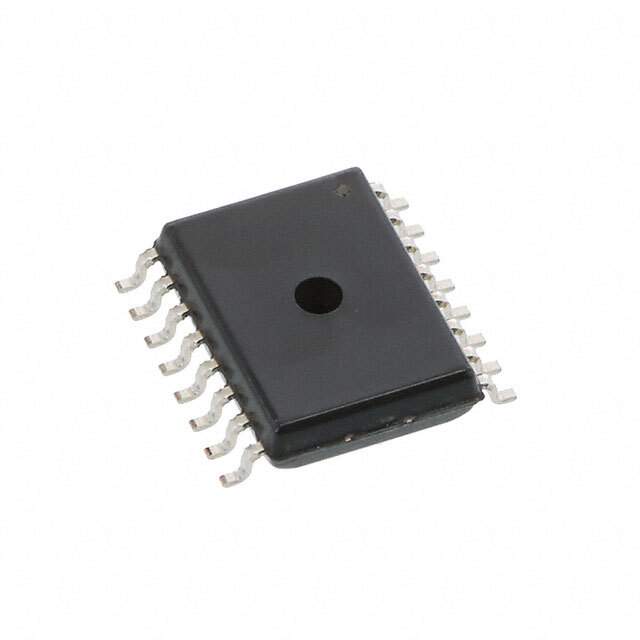

MLX90809LXG-EAD-000-SP Real Image
Same model may have multiple batches, images only for reference.

MLX90809LXG-EAD-000-SP

Part No MLX90809LXG-EAD-000-SP
Manufacturer Melexis Technologies NV
Catalog Pressure Sensors, Transducers
Description IC PRESSURE SENSOR 16SOIC / Pressure Sensor -15.23PSI ~ 0.73PSI (-105kPa ~ 5kPa) Differential 0.5 V ~ 4.5 V 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Datasheet
MLX90809LXG-EAD-000-SP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Melexis Technologies NV
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure -15.23PSI ~ 0.73PSI (-105kPa ~ 5kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±1.5%
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 150°C
Package / Case 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package 16-SOIC
Base Product Number MLX90809
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 39
Win Source Part Number 1122701-MLX90809LXG-EAD-000-SP
Ultra Librarian 3D Model Ultra Librarian MLX90809LXG-EAD-000-SP CAD Model

Description

The Melexis Technologies NV 1014001 is a pressure sensor/transducer that comes with amplified output and temperature compensation features.

  • Output Type: Analog Voltage
  • Output Range: 0.5V to 4.5V
  • Accuracy: ±1.5%
  • Pressure Type: Differential
  • Pressure Range: -15.23PSI to 0.73PSI (-105kPa to 5kPa)
  • Mounting: Board Mount
  • Package: 16-SOIC (0.295", 7.50mm Width) Exposed Pad
