Same model may have multiple batches, images only for reference.

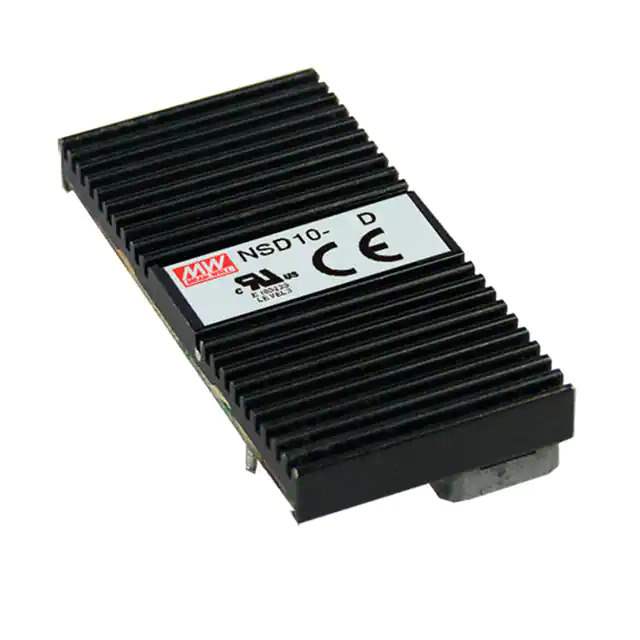

NSD10-12D15 Real Image
Same model may have multiple batches, images only for reference.

NSD10-12D15

Part No NSD10-12D15
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 330mA, 330mA 9.8V - 36V Input
Datasheet
NSD10-12D15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series NSD10-D (10W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9.8V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 330mA, 330mA
Power (Watts) 10 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 77%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
Base Product Number NSD10
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847272-NSD10-12D15
Ultra Librarian 3D Model Ultra Librarian NSD10-12D15 CAD Model

Description

The Mean Well NSD10-12D15 is a 10W isolated module for board mount power supply applications.

  • Features: Remote On/Off, OCP, OVP, SCP
  • Package: Tray (300 pieces)
  • Size: 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
  • Application: ITE (Commercial)
  • Power Output: 10W
  • Efficiency: 77%
  • Voltage Isolation: 1 kV
  • Output 1 Voltage: 15V
  • Output 2 Voltage: -15V
  • Output Current (Max): 330mA (each output)
  • Input Voltage: 9.8V to 36V
