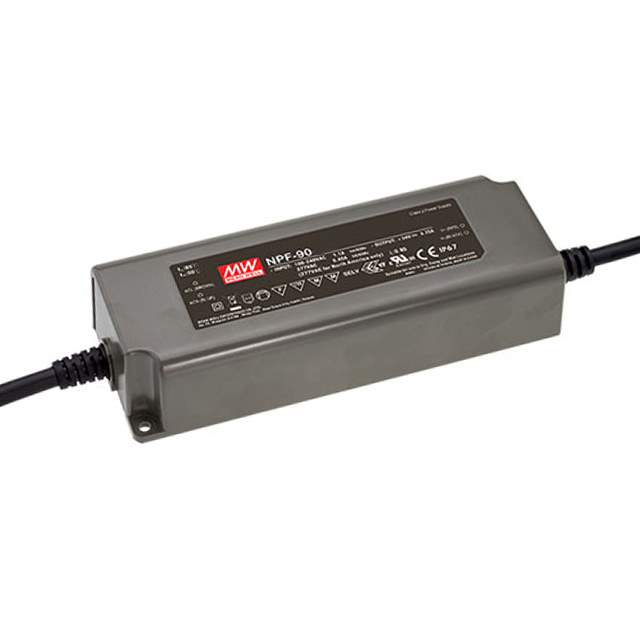

NPF-90-24 Real Image
Same model may have multiple batches, images only for reference.

NPF-90-24

Part No NPF-90-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DVR CCCV ACDC 14.4-24V 3.75A / 3.75A 14.4 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
NPF-90-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series NPF-90 (90W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 14.4 ~ 24V
Current - Output (Max) 3.75A
Power (Watts) 90 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Termination Style Wire Leads
Dimension 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
Base Product Number NPF-90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names NPF-90-24-ND,1866-3603
Standard Package 18
Win Source Part Number 1203040-NPF-90-24
Ultra Librarian 3D Model Ultra Librarian NPF-90-24 CAD Model

Description

The MEAN WELL NPF-90-24 is a 90W constant current/voltage LED driver with OCP, OTP, OVP, and SCP features.

  • Voltage Output: 14.4 ~ 24V
  • Current Output: 3.75A
  • Type: AC DC Converter
  • Voltage Isolation: 3.75 kV
  • Operating Temperature: -40°C to 85°C
  • IP Rating: IP67
  • Mounting Type: Chassis Mount
  • Dimension: 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm)
  • Package: Box
  • Termination Style: Wire Leads
