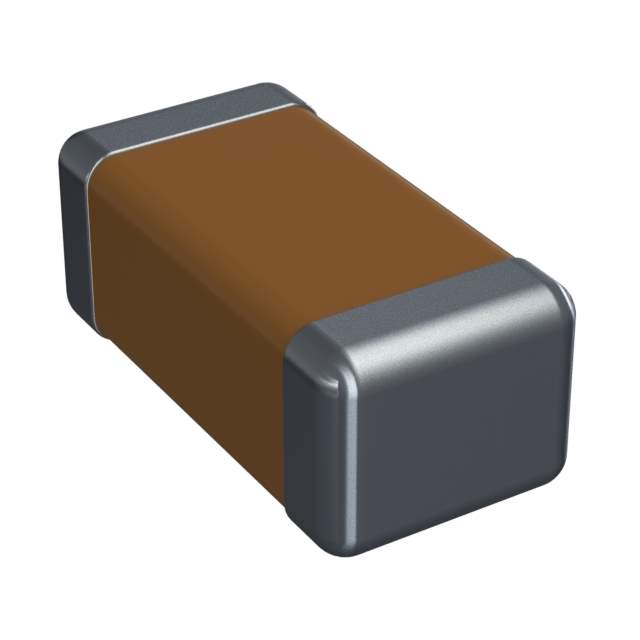

The 1206YC105KAZ2A is a multilayer ceramic capacitor (MLCC) manufactured by AVX Corporation. It is designed for general-purpose applications in various electronic circuits, providing stable capacitance and reliable performance.

Applications

• Bypass capacitors in power supplies
• Decoupling capacitors in digital circuits
• Filtering in analog circuits
• Timing circuits
• General-purpose applications in consumer electronics

Features

• Capacitance of 1.0 µF
• Voltage rating of 16V
• X7R dielectric
• 1206 case size
• Surface mount technology (SMT)

Benefits

• Provides stable capacitance over temperature
• Reduces noise and ripple in power supplies
• Improves signal integrity in digital circuits
• Small form factor saves board space
• Easy to integrate into automated assembly processes

Technical Specifications: The 1206YC105KAZ2A has a capacitance of 1.0 µF with a tolerance of ±10%. The voltage rating is 16V. The operating temperature range is -55°C to +125°C. The dielectric material is X7R, which provides stable capacitance over temperature variations. The case size is 1206, suitable for surface mount applications. It offers low equivalent series resistance (ESR) and low equivalent series inductance (ESL).
