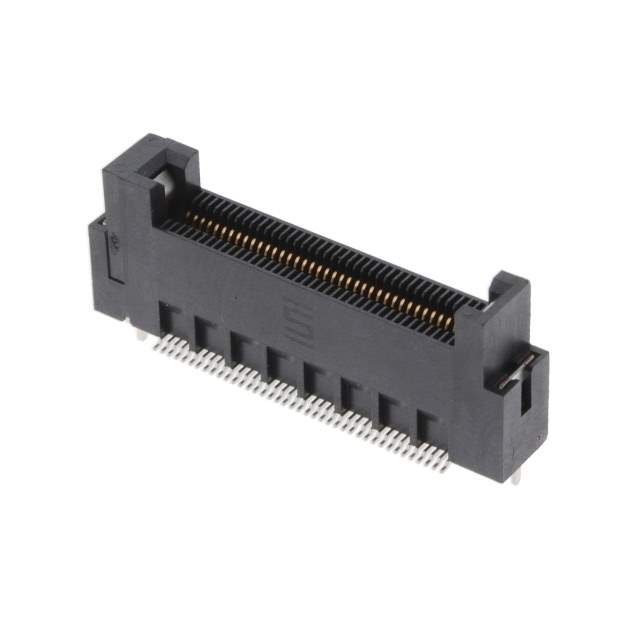

MEC5-040-01-L-DV-W1-K-TR Real Image
Same model may have multiple batches, images only for reference.

MEC5-040-01-L-DV-W1-K-TR

Part No MEC5-040-01-L-DV-W1-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN MINI EDGE CARD 80POS SMD / 80 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) Black
Datasheet
MEC5-040-01-L-DV-W1-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series MEC5 - DV
Package Tape & Reel
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 40
Number of Positions 80
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide, Pick and Place, Solder Retention
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC5-040
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM15098TR,SAM15098DKR,SAM15098CT,MEC5-040-01-L-DV-W1-K-FR
Standard Package 225
Win Source Part Number 1028341-MEC5-040-01-L-DV-W1-K-TR
Ultra Librarian 3D Model Ultra Librarian MEC5-040-01-L-DV-W1-K-TR CAD Model

Description

The CL10C040CBNC is a 0603 ceramic capacitor with a capacitance of 4pF and a voltage rating of 50V from Samsung.

  • Capacitance: 4pF
  • Voltage Rating: 50V
  • Temperature Coefficient: 30 ppm/°C
  • Height: 900μm
  • Mounting Type: Surface mount technology (SMT)
