HLG-100H-36 Mean Well Enterprises Co., Ltd. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HLG-100H-36

Part No HLG-100H-36
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DVR CC/CV AC/DC 18-36V 2.65A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Programmable Not Verified
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 18 ~ 36V
Current - Output (Max) 2.65A
Power (Watts) 95 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 80°C
Efficiency 93%
Termination Style Wire Leads
Size / Dimension 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm)
Approval Agency CB, CCC, CE, cURus, PSE, RCM, TUV
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1569453-HLG-100H-36
Ultra Librarian 3D Model Ultra Librarian HLG-100H-36 CAD Model

Description

N

You May Also Be Interested in

HBG-100-36 Mean Well Enterprises Co., Ltd. – Price, Stock & Datasheet
HBG-100-36
Mean Well Enterprises Co., Ltd.
LED DRVR CC AC/DC 21.6-36V 2.7A
Need more? Email Us
Picture of ELG-75-C1050
ELG-75-C1050
Mean Well Enterprises Co., Ltd.
LED DRVR CC AC/DC 35-71V 1.05A
Need more? Email Us
HLG-185H-20 Mean Well Enterprises Co., Ltd. – Price, Stock & Datasheet
HLG-185H-20
Mean Well Enterprises Co., Ltd.
LED DRVR CC/CV AC/DC 10-20V 9.3A
Need more? Email Us

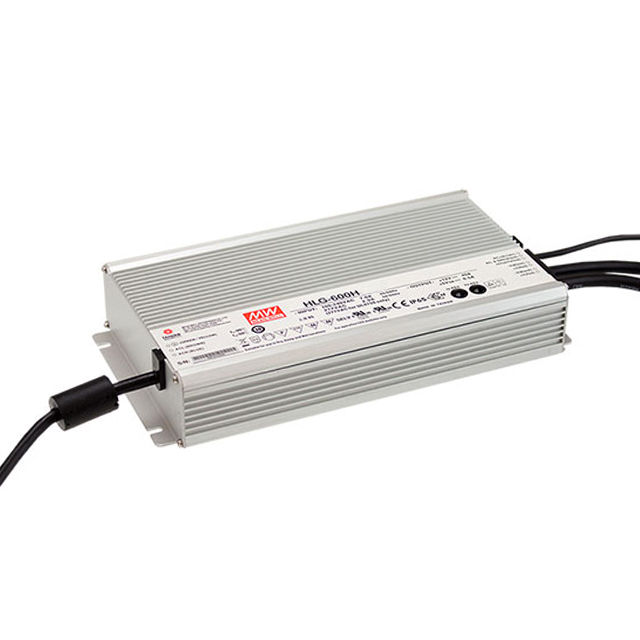

Picture of HLG-600H-36A
