Same model may have multiple batches, images only for reference.

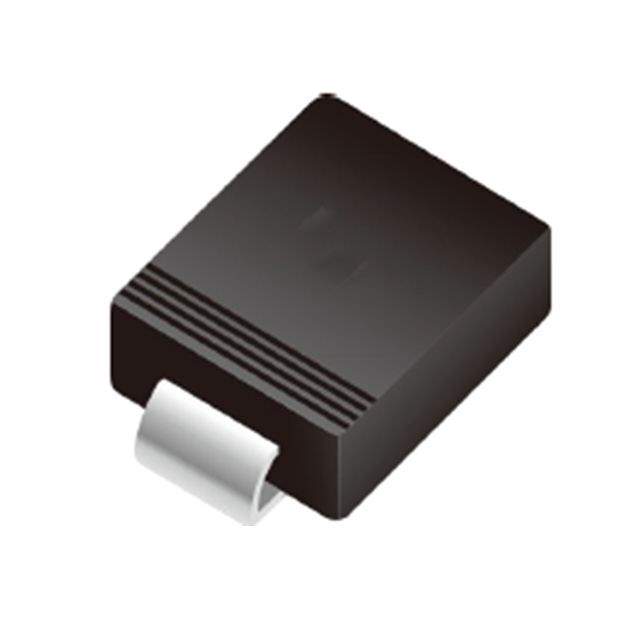

SS5150C Real Image
Same model may have multiple batches, images only for reference.

SS5150C

Part No SS5150C
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY DIODE SMC 150V 5A  /  Diode Schottky 150 V 5A Surface Mount
Datasheet
SS5150C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr MDD
Series SMC
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 150 V
Capacitance @ Vr, F 400pF @ 4V, 1MHz
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 3372-SS5150CTR,SMCSS5150S5150
Standard Package 3,000
Win Source Part Number 1096133-SS5150C
Ultra Librarian 3D Model Ultra Librarian SS5150C CAD Model

Description

The SS5150C is a high-quality diode rectifier from MDD.

  • Series: SMC
  • Package: Tape and Reel
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 150 V
  • Average Rectified Current (Io): 5A
  • Voltage - Forward (Vf) (Max) @ If: 850 mV @ 5 A
  • Current - Reverse Leakage @ Vr: 1 mA @ 150 V
  • Capacitance @ Vr, F: 400pF @ 4V, 1MHz
  • REACH: Unaffected
  • MSL Level: 1
