Same model may have multiple batches, images only for reference.

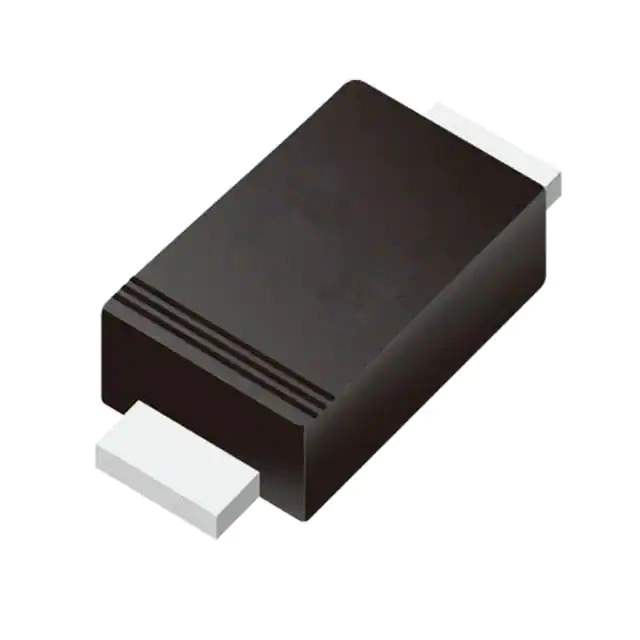

SS310F Real Image
Same model may have multiple batches, images only for reference.

SS310F

Part No SS310F
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 3A SMAF
Datasheet
SS310F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 100 V
Capacitance @ Vr, F 180pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676336-SS310F
Ultra Librarian 3D Model Ultra Librarian SS310F CAD Model

Description

The 676336-SS310F is a single diode used in rectifier applications.

  • Series: SMAF series
  • Category: Discrete Semiconductor Products
  • Type: Fast Recovery Diode, Schottky Diode
  • Package: Tape & Reel
  • Standard Package: 6,000 pieces
  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 3A
  • Reverse Leakage Current: 300μA @ Maximum Reverse Voltage
  • Capacitance: 180pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Surface Mountable
  • Package/Case: DO-221AC, SMA Flat Leads
  • Supplier Device Package: SMAF
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8542.39.0001
  • Manufacturer: MDD
  • Product Status: Active
