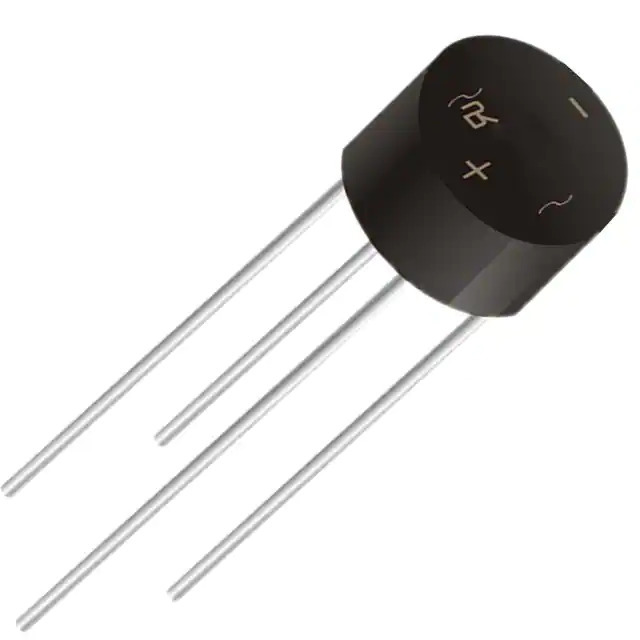

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr MDD
Series WOM
Package Box
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 83 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Circular, WOM
Supplier Device Package WOM
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367754-2W10
Ultra Librarian 3D Model Ultra Librarian 2W10 CAD Model

Description

The 1367754-2W10 is a bridge rectifier diode from the WOM series by MDD.

  • Product Category: Discrete Semiconductor Products
  • Application: Diode
  • Temperature Range: -55°C to 150°C (TJ)
  • Forward Voltage: 1.1V @ 2A
  • Reverse Leakage Current: 10µA @ 1000V
  • Phase: Single-Phase
  • Peak Reverse Voltage: 1kV
  • Package: 4-circular, WOM
  • Mounting Type: Through-Hole
  • REACH: Compliant
  • ECCN: EAR99
  • Average Rectified Current: 83mA
  • Product Status: Active
