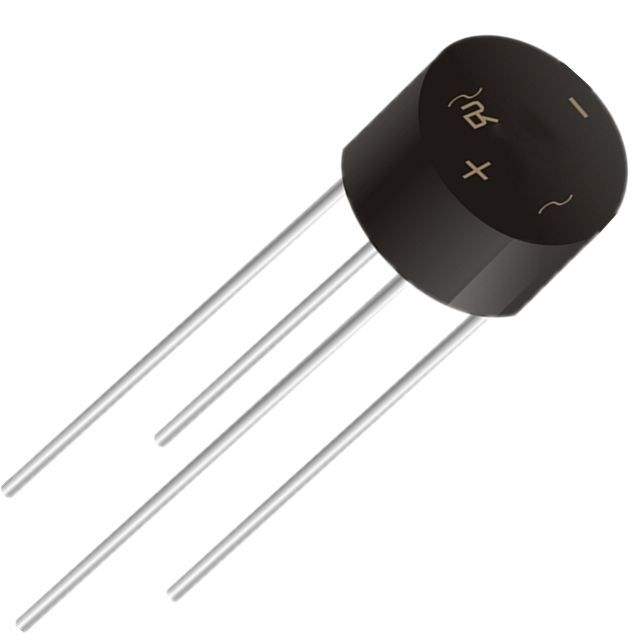

The 2W04 is a silicon bridge rectifier manufactured by MDD (Microdiode Electronics MDD). It is designed to convert alternating current (AC) to direct current (DC) efficiently. Bridge rectifiers like the 2W04 are commonly used in power supplies and other electronic circuits to provide the necessary DC voltage for operation.

Applications

• Power supplies for electronic devices
• Adapters for charging mobile devices
• LED lighting systems
• Household appliances
• Industrial control equipment

Features

• High surge current capability
• High forward current capability
• Low reverse leakage current
• High reliability
• Compact size

Benefits

• Efficient AC to DC conversion
• Stable DC voltage output
• Protection against voltage spikes
• Long lifespan
• Easy integration into circuits

Additional Details

The 2W04 typically has a maximum repetitive peak reverse voltage of 400V and a maximum RMS voltage of 280V. The average forward rectified current is usually around 2A. The surge current capability often reaches 50A. It comes in a standard package. It's designed for through-hole mounting on printed circuit boards (PCBs). It's important to consider heat dissipation when using bridge rectifiers, especially at higher currents. A heatsink may be required in some applications to prevent overheating and ensure reliable operation. Always consult the datasheet for specific electrical characteristics and thermal considerations.
