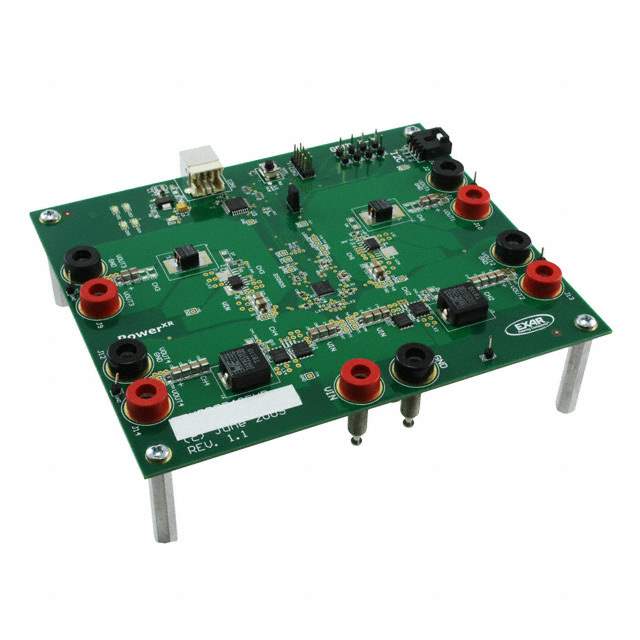

The XRP7740EVB is an evaluation board for the XRP7740, a quad output, multi-rail power management IC (PMIC) from MaxLinear. This evaluation board allows designers to test and evaluate the performance of the XRP7740 in a variety of applications. It provides easy access to all the features and functions of the PMIC, enabling quick prototyping and development.

Applications:

• FPGA and processor power
• Embedded systems
• Industrial control systems
• Networking equipment
• Telecommunications equipment
• Point-of-load (POL) power supplies

Features:

• Onboard XRP7740 PMIC
• Adjustable output voltages
• Overcurrent protection
• Overtemperature protection
• Enable/disable control
• Voltage monitoring points
• Easy access to all PMIC pins
• Optimized layout for performance evaluation

Benefits:

• Simplifies evaluation of the XRP7740 PMIC
• Reduces development time
• Allows for easy customization of power supply parameters
• Provides a platform for testing different operating conditions
• Facilitates design optimization

Technical Specifications:

Key specifications related to the evaluation board and the XRP7740 include:

• Input Voltage Range: Typically wide, e.g., 4.5V to 25V, depending on the specific configuration and application.
• Output Voltage: Adjustable for each of the four rails; ranges are determined by external resistor dividers.
• Output Current: Limited by the XRP7740, typically up to several amps per rail.
• Switching Frequency: Configurable via external components, often in the range of 200kHz to 2MHz.
• Protection Features: Includes overcurrent protection (OCP), overvoltage protection (OVP), and overtemperature protection (OTP).
• Efficiency: High efficiency, often exceeding 90%, depending on load conditions.

The XRP7740 is a highly integrated PMIC designed to provide efficient and reliable power management for a variety of applications. The XRP7740EVB provides a convenient and comprehensive platform for evaluating the PMIC's performance and capabilities. By offering adjustable output voltages, protection features, and easy access to all PMIC pins, the evaluation board simplifies the design and development process, allowing engineers to quickly prototype and optimize their power supply designs.
