DX07P022AA6R2000 JAE Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DX07P022AA6R2000

Part No DX07P022AA6R2000
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors —USB, DVI, HDMI Connector Assemblies

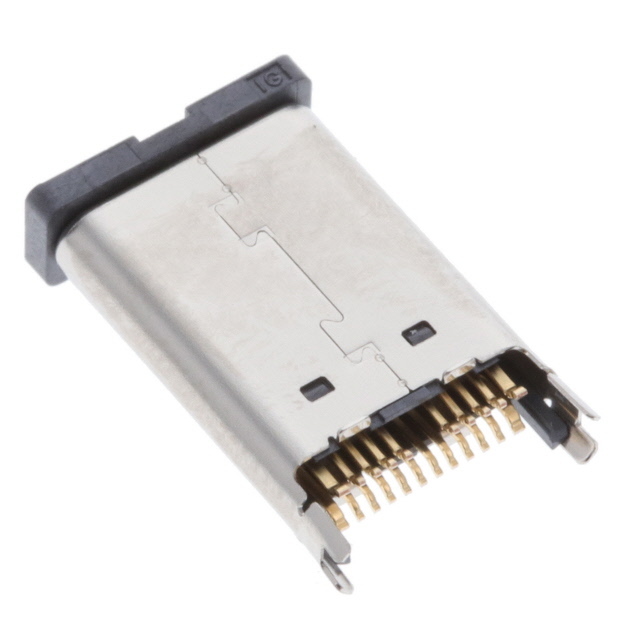

Description CONN PLG USB3.2 TYP C 24P BRD ED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsUSB, DVI, HDMI ConnectorsUSB, DVI, HDMI Connector Assemblies
Manufacturer JAE Electronics
Series DX07
Part Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24 (22+2 Dummy)
Gender Plug
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Board Edge, Straddle Mount
Mounting Feature Reversible
Termination Solder
Features Cover
Operating Temperature -30°C ~ 80°C
Number of Ports 1
Voltage - Rated 48V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Insulation Color Black
Base Product Number DX07P022
