Same model may have multiple batches, images only for reference.

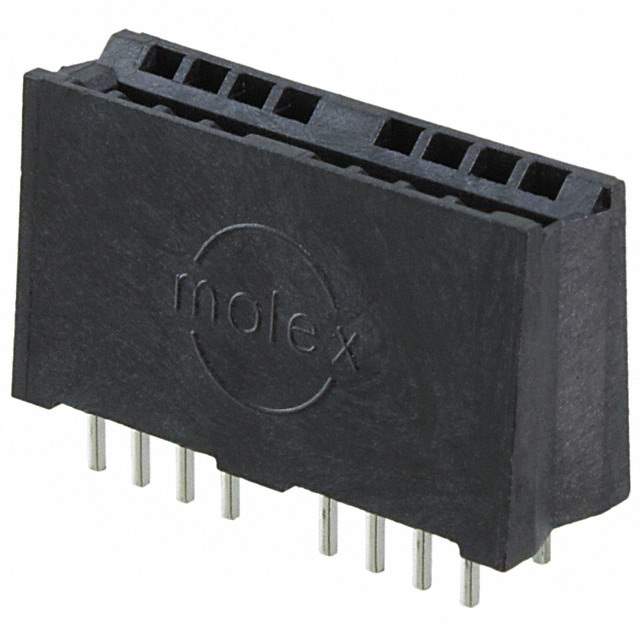

458440004 Real Image
Same model may have multiple batches, images only for reference.

458440004

Part No 458440004
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FEMALE 16POS GOLD
Datasheet
458440004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Extreme Power Edge 45844
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 8
Number of Positions 16
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Mounting Style Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Black
Operating Temperature Range -40°C ~ 105°C
Material - Insulation Liquid Crystal Polymer (LCP)
Read Out Dual
Win Source Part Number 785136-458440004
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 458440004 CAD Model

Description

The Molex Extreme Power Edge 45844 is a high-performance connector from Molex.

  • Positions: 16
  • Mounting Type: Through Hole
  • Design: Dual-Row, Dual-Edge
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Supply and Demand Status: Limited
