The TSC427MJA from Maxim Integrated is a high-performance, dual-output power MOSFET driver specifically designed to deliver fast-switching performance. This component is ideal for driving capacitive loads such as the gates of power MOSFETs, with efficiency and speed. Its robust design makes it suitable for a wide range of industrial applications, including motor control, power supply modules, and high-speed line drivers.

Key Features

• High Peak Output Current: The TSC427MJA is capable of delivering peak output currents of up to 1.5A, making it suitable for driving large capacitive loads with ease.
• Wide Supply Voltage Range: It operates over a broad supply voltage range from 4.5V to 18V, providing versatility across various power systems.
• Fast Switching Times: With rise and fall times typically under 30ns, this driver ensures rapid transitions, reducing power loss and improving efficiency in high-frequency applications.
• Independent Inputs: The device features independent input logic for each channel, allowing for flexible control schemes and simplifying design integration.
• Thermal Protection: Built-in thermal shutdown protects the device from overheating, enhancing reliability and longevity.
• Matched Rise and Fall Times: The TSC427MJA offers matched rise and fall times, which minimizes switching noise and reduces electromagnetic interference (EMI).

Applications

The versatility of the TSC427MJA makes it suitable for a variety of applications, such as:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Controllers
• Power Inverters
• Pulse Generators
• Class D Switching Amplifiers

Package and Quality

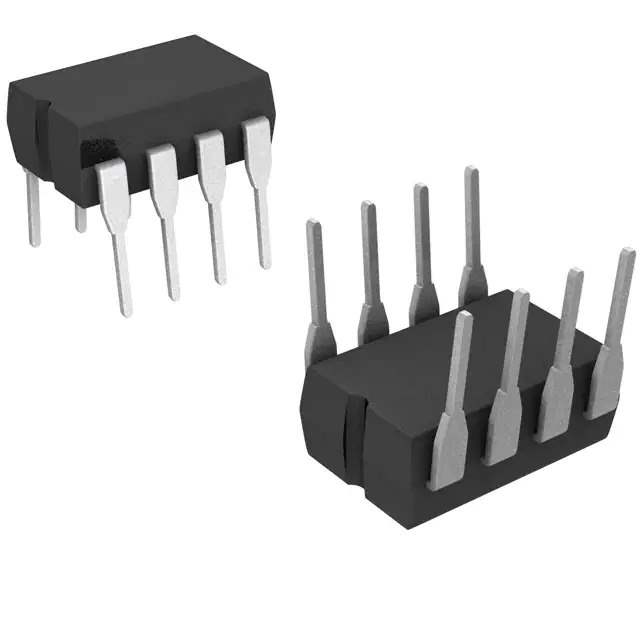

The TSC427MJA comes in a robust 8-pin CERDIP (Ceramic Dual In-line Package) that ensures durability and reliability in harsh environments. Maxim Integrated's commitment to quality means that each device is rigorously tested to meet high-performance standards, ensuring customer satisfaction and long-term performance.
