Maxim Integrated MAX7456EVKIT+ Evaluation Kit

The MAX7456EVKIT+ from Maxim Integrated is a comprehensive evaluation kit designed for testing and prototyping with the MAX7456 single-channel, monochrome on-screen display (OSD) generator. This powerful tool is an ideal solution for developers looking to incorporate video overlay features into their applications, such as in security systems, car video systems, or any other video equipment requiring text or graphics overlay.

The MAX7456 monochrome OSD generator integrates nonvolatile memory, an analog composite video generator, and a character generator, making it a versatile choice for creating high-quality on-screen displays. It simplifies the design process by allowing the overlay of 256 user-definable characters or pictographs in NTSC, PAL, or SECAM video signals.

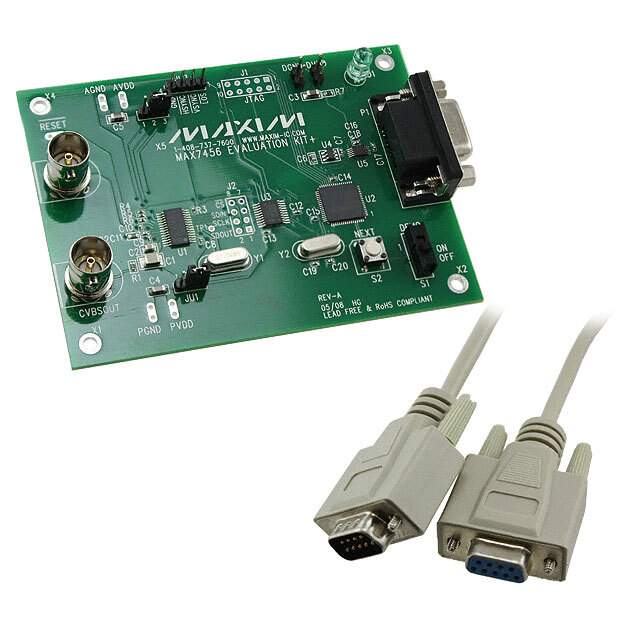

The evaluation kit includes a fully assembled and tested evaluation board that features the MAX7456 IC, providing a convenient platform for developers to begin their work without the need for complex setup procedures. The board comes equipped with an RCA jack for video input and output, enabling easy connection to external video sources and displays. Additionally, it provides access to all the necessary power and digital signal connections through headers and test points.

For enhanced user experience, the MAX7456EVKIT+ is supported by a Windows-based software that allows users to interact with the MAX7456 through a graphical user interface (GUI). This software facilitates the customization of the character set and the manipulation of the OSD's attributes, including position, brightness, and blinking, without the need for in-depth programming knowledge.

The kit also comes with a detailed user guide that provides instructions on how to get started, as well as comprehensive technical documentation of the MAX7456 chip to aid in the development process. With this information, users can fully leverage the capabilities of the MAX7456, such as its built-in sync generation, programmable font, and display features.

Overall, the MAX7456EVKIT+ from Maxim Integrated is an indispensable tool for engineers and developers aiming to incorporate advanced OSD features into their video applications, providing a user-friendly interface and robust functionality that accelerates the development cycle.
