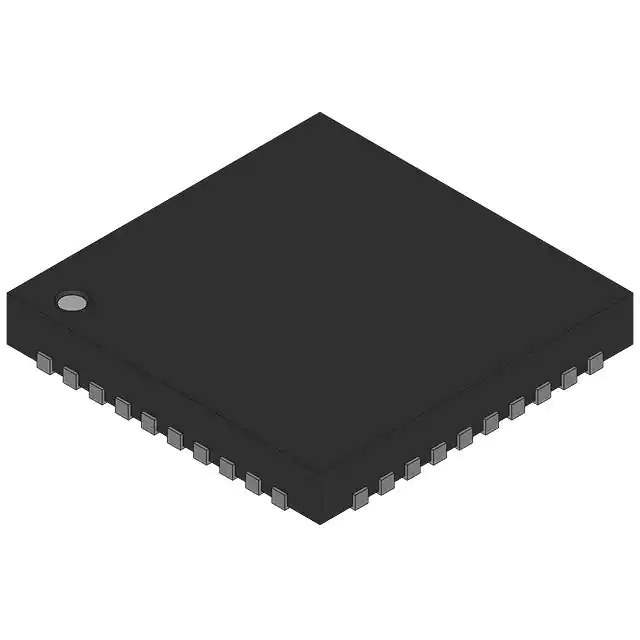

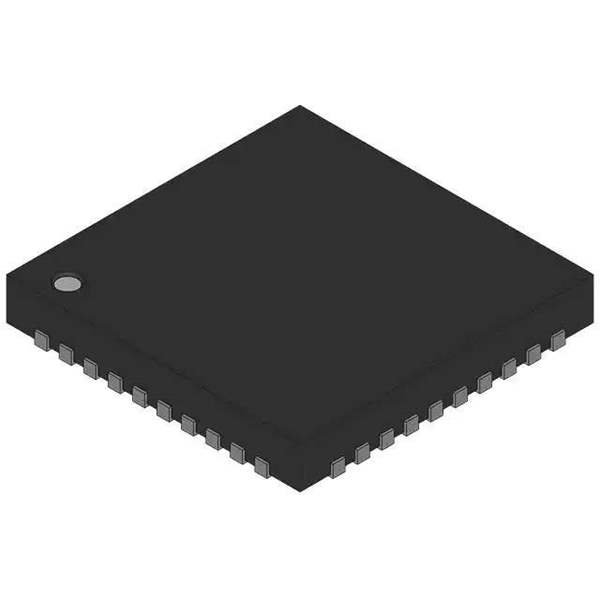

Maxim Integrated MAX7300AGL Product Overview

The Maxim Integrated MAX7300AGL is a highly versatile, programmable I/O expander designed to provide additional digital I/O ports for microcontrollers and microprocessors within a compact, low-power package. This makes it an ideal solution for applications where board space is at a premium and additional I/Os are necessary for interface control, keypads, displays, and other peripherals.

Key Features

• Expansive I/O Support: The MAX7300AGL offers 28 programmable I/O ports that can be configured as either inputs or outputs, providing a high level of flexibility for a wide range of applications.
• Serial Interface: It utilizes a 2-wire, I²C-compatible serial interface, allowing for easy integration into existing designs and communication with most microcontrollers with minimal pin usage.
• Low Standby Current: Its low standby current (as low as 1µA) is particularly suitable for battery-powered and power-sensitive applications, ensuring efficient power management.
• Transition Detection: The device includes transition detection on selected inputs, which can flag a microcontroller when an input state changes, thus reducing the need for constant polling and further conserving power.
• Operating Voltage Range: The MAX7300AGL operates within a voltage range of 2.7V to 5.5V, accommodating a variety of logic levels and making it compatible with most modern microcontrollers.
• Extended Temperature Range: It is designed to function over an extended temperature range from -40°C to +125°C, ensuring reliable operation under extreme conditions.
• Compact Package: Available in a 36-pin SSOP (Shrink Small Outline Package), the MAX7300AGL is designed for space-constrained applications.

Applications

The MAX7300AGL is suited for a broad range of applications, including but not limited to industrial control systems, automotive control systems, portable devices, and any system requiring additional I/O ports for expansion. Its robust feature set ensures that it can meet the needs of complex designs while maintaining simplicity in integration and power efficiency.

For developers and engineers looking to expand the capabilities of their systems with additional I/Os, the Maxim Integrated MAX7300AGL presents itself as a compact, reliable, and energy-efficient solution.
