MAX487EESA: Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers

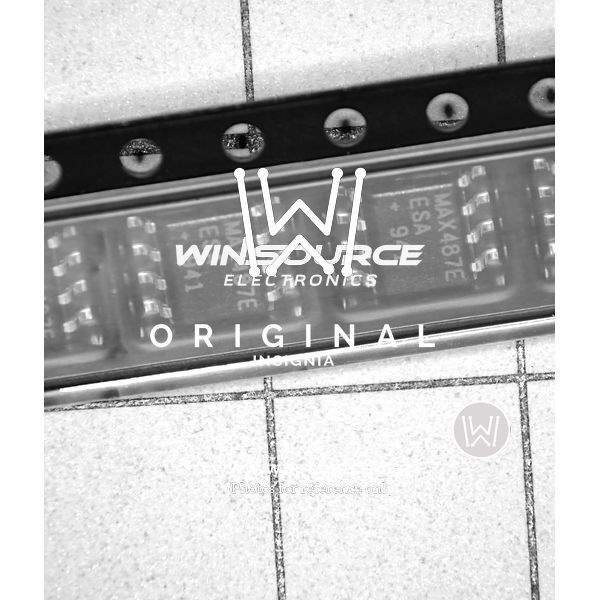

The MAX487EESA is a robust, low-power transceiver module from Maxim Integrated, designed for RS-485 and RS-422 communication protocols. This high-performance integrated circuit is well-suited for multi-point data transmission systems that require low power consumption and high noise immunity. The MAX487EESA is housed in an 8-pin NSOIC package, providing a compact solution for space-constrained applications.

Key Features

• Low Quiescent Current: The device operates with a low supply current, typically 120µA, making it ideal for power-sensitive applications.
• Slew-Rate Limitation: The MAX487EESA features a controlled slew rate, which minimizes electromagnetic interference (EMI) and reduces reflections caused by improperly terminated cables, ensuring reliable data transmission over long distances.
• Half-Duplex Communication: This transceiver is designed for half-duplex communication, allowing bidirectional communication over a single pair of wires.
• Extended Common-Mode Range: The device can handle common-mode voltages from -7V to +12V, exceeding the requirements of the RS-485 and RS-422 standards, which provides robustness against ground potential differences.
• Thermal Shutdown: The MAX487EESA is equipped with a thermal shutdown feature that protects the device from damage due to excessive power dissipation.
• Driver Short-Circuit Protection: The driver outputs are protected against short circuits, ensuring the device's reliability in harsh electrical environments.
• Receiver Input Hysteresis: The receiver has built-in hysteresis, which increases noise immunity and allows for clean data reception.

Applications

The MAX487EESA is versatile and can be used in a variety of applications, including industrial control systems, building automation, networked security systems, and any other systems that require a reliable RS-485 or RS-422 communication interface. Its low-power consumption and enhanced protection features make it an excellent choice for both new designs and upgrades to existing systems.

With its combination of features, the MAX487EESA from Maxim Integrated stands out as a reliable and efficient solution for data communication in demanding industrial environments.
