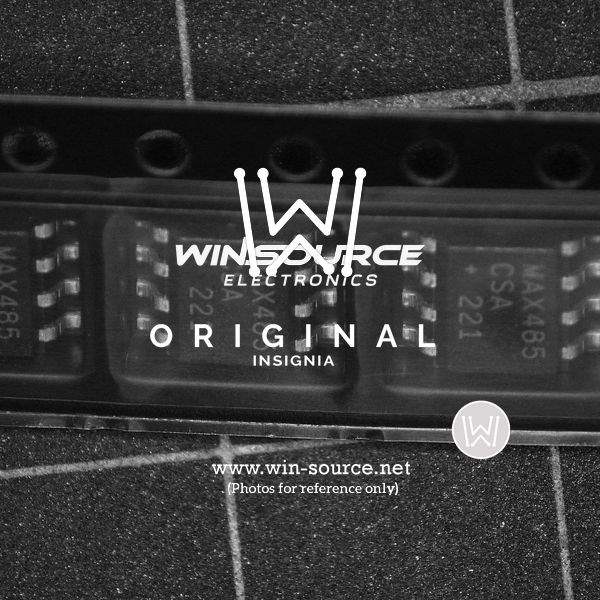

Maxim Integrated MAX485CSA+ RS-485/RS-422 Transceiver

The MAX485CSA+ is a low-power, slew-rate-limited transceiver from Maxim Integrated, designed for RS-485 and RS-422 communication. This device is specifically engineered to operate in half-duplex communication systems, sharing a single pair of wires for bidirectional data transmission. The MAX485CSA+ is an ideal choice for applications requiring long-distance data communication with low power consumption and a controlled slew rate to minimize electromagnetic interference (EMI).

Key Features

• Interface Type: RS-485/RS-422
• Data Rate: Up to 2.5Mbps
• Supply Voltage: 5V
• Operating Temperature Range: -40°C to +85°C
• Driver/Receiver Channels: 1/1
• Package: SOIC-8
• ESD Protection: ±15kV Human Body Model (HBM)

The MAX485CSA+ features a reduced slew rate, which limits the data rate to 2.5Mbps but allows for error-free communication over longer distances or in noisy environments. Its low quiescent current of 300µA (typical) makes it suitable for power-sensitive applications. Additionally, the device supports a wide common-mode voltage range, making it robust against ground potential differences.

Applications

With its balanced transmission lines and differential signaling, the MAX485CSA+ is commonly used in a variety of industrial and commercial communication systems, including but not limited to:

• Industrial Control Systems
• Building Automation
• Networked Security Cameras
• Remote Sensors and Data Acquisition Systems
• Point of Sale (POS) Systems

Furthermore, the device's integrated thermal shutdown and current-limiting features provide additional protection against faults and excessive power dissipation, which ensures reliable operation under harsh conditions. The MAX485CSA+ is available in an 8-pin SOIC package, which is easy to integrate into various circuit designs.

Maxim Integrated's commitment to quality and reliability is evident in the MAX485CSA+, making it a trusted choice for engineers and designers looking to implement RS-485/RS-422 communication protocols in their systems.
