Maxim Integrated MAX4695ETC+T Analog Switch

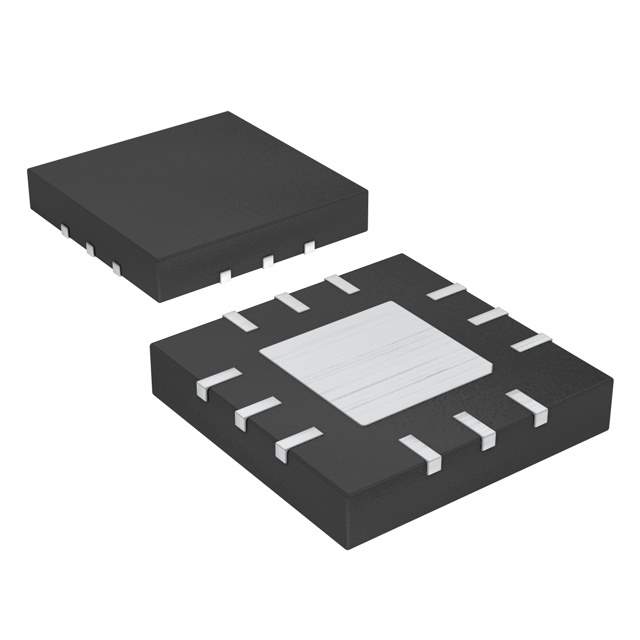

The MAX4695ETC+T from Maxim Integrated is a high-performance, single-pole/double-throw (SPDT) analog switch that is designed to deliver precision and reliability for a wide range of applications. This compact and efficient switch is housed in a 12-pin TQFN package, making it an ideal solution for space-constrained designs.

With its low on-resistance of just 0.5 ohms, the MAX4695ETC+T provides an excellent signal integrity, which is crucial for maintaining the quality of the signal path in analog and digital circuits. This low resistance is matched with a low on-resistance flatness of 0.1 ohms, ensuring consistent performance across the entire signal range.

The switch operates from a single supply voltage ranging from +1.8V to +5.5V, which allows it to be used in various circuit configurations and with different logic levels. This versatility makes it suitable for portable battery-operated devices as well as for industrial applications that require a wide operating voltage range.

One of the key features of the MAX4695ETC+T is its fast switching speed, with a turn-on time of just 25ns and a turn-off time of 20ns. This rapid switching capability is essential for applications that require high-speed signal routing, such as data acquisition systems, sample-and-hold circuits, and communication devices.

Additionally, the MAX4695ETC+T offers a high off-isolation of -65dB at 1MHz and a high crosstalk performance of -75dB at 1MHz, which minimizes signal interference and leakage between channels. This is particularly important in applications where signal integrity cannot be compromised, such as audio and video signal routing.

The device also features an ESD protection of ±15kV Human Body Model, ensuring robustness and longevity in environments where electrostatic discharge could pose a threat to electronic components.

In summary, the Maxim Integrated MAX4695ETC+T is a high-quality SPDT analog switch that offers excellent performance with its low on-resistance, fast switching speed, and strong signal isolation capabilities. Its compact form factor and wide operating voltage range make it a versatile choice for designers looking to optimize their systems for both space and functionality.
