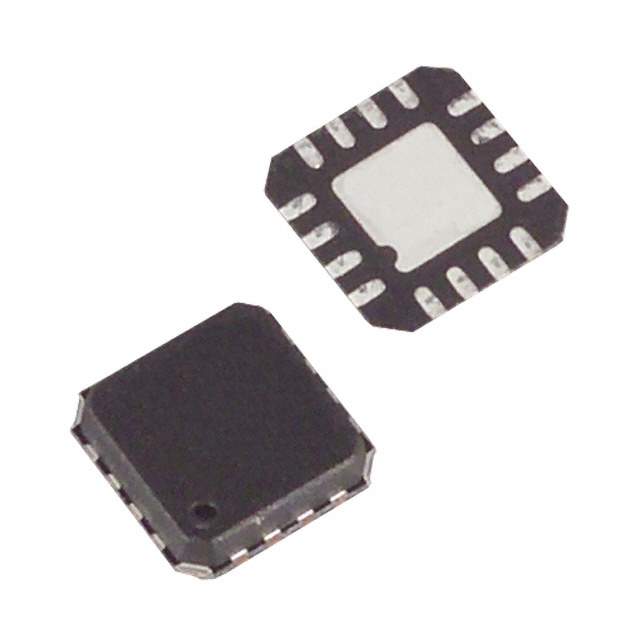

Maxim Integrated MAX4692EGE+ Analog Multiplexer

The MAX4692EGE+ from Maxim Integrated is a high-performance, single-ended, 8-channel analog multiplexer that is designed to operate with a single supply voltage ranging from +1.8V to +5.5V, making it suitable for a variety of applications including battery-powered devices. This versatile component is part of Maxim's precision analog multiplexer and switch series, offering an excellent combination of low power consumption and high-speed operation.

Encased in a compact 16-pin QSOP package, the MAX4692EGE+ features low on-resistance of less than 100 ohms, which remains flat over the specified signal range and minimally varies with temperature. This characteristic ensures that the signal integrity is preserved across the multiplexer, making it ideal for sample and hold circuits, data acquisition systems, and analog signal routing applications.

With its fast switching speeds (t_ON < 250ns and t_OFF < 145ns), the MAX4692EGE+ is capable of handling high-frequency signals without significant distortion, which is crucial for applications requiring rapid signal processing. Additionally, its low crosstalk and off-isolation parameters ensure minimal interference between channels, providing a clear and accurate signal path.

The device also includes a digital input that enables a break-before-make switching action, which prevents momentary shorting when switching between channels. This feature is particularly important in preventing damage to sensitive circuit components or erroneous readings during the multiplexing process.

Furthermore, the MAX4692EGE+ offers an ESD protection of up to 2000V, which adds to the robustness of the design, protecting against static discharges that could otherwise compromise the performance of the multiplexer.

Whether used in communication systems, data acquisition, instrumentation, or other applications requiring a reliable and efficient analog signal routing solution, the MAX4692EGE+ from Maxim Integrated stands out as a solid choice for designers looking to optimize their circuit designs.

For detailed specifications and application guidance, designers are encouraged to consult the comprehensive datasheet provided by Maxim Integrated, which includes electrical characteristics, pin configurations, and typical operating circuits.
