Maxim Integrated MAX4684EUB+T Analog Switch

The MAX4684EUB+T from Maxim Integrated is a high-performance, single-pole/double-throw (SPDT) analog switch that is designed to deliver precision signal routing in a compact package. This versatile component finds its applications in a variety of fields ranging from data acquisition systems, communication devices to portable consumer electronics due to its low power consumption and high switching speeds.

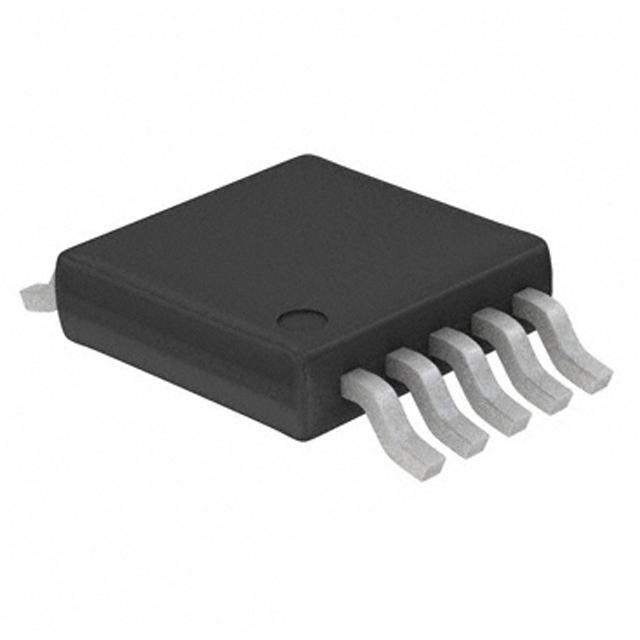

Encased in a space-saving 10-pin µMAX package, the MAX4684EUB+T offers a dual-supply operation ranging from ±1.8V to ±5.5V or a single supply of +2.7V to +11V, making it suitable for a wide array of power environments. The switch features low on-resistance (R<sub>ON) of just 0.5 ohms (typical) which is matched between channels to within 0.05 ohms (typical) and is flat (0.3 ohms max) over the specified signal range, ensuring minimal signal distortion and consistent performance.

With its high off-isolation of -75dB at 1MHz and crosstalk of -85dB at 1MHz, the MAX4684EUB+T ensures that signal integrity is maintained even in environments with high switching activity. The fast switching times (t<sub>ON of 30ns and t<sub>OFF of 20ns) contribute to efficient signal management and reduced latency in critical applications.

Maxim Integrated has also designed the MAX4684EUB+T with ESD protection greater than 2000V per the Human Body Model, adding to the robustness and reliability of the switch. The device's extended temperature range from -40°C to +85°C allows for operation in extreme conditions, making it a versatile choice for industrial and automotive applications.

For designers and engineers looking for a high-performance SPDT analog switch, the MAX4684EUB+T provides a combination of low power operation, high-speed switching, and precision signal routing, all packed in a micro footprint. Whether it's for sample-and-hold circuits, battery-powered equipment, or audio and video signal routing, this analog switch from Maxim Integrated is engineered to meet the stringent requirements of modern electronic systems.
