Maxim Integrated MAX4583LEEE Analog Switch

The Maxim Integrated MAX4583LEEE represents a high-performance, low-voltage, single-pole/double-throw (SPDT) analog switch designed to deliver precision and efficiency in a variety of applications. This compact switch is a part of Maxim's commitment to providing innovative, reliable solutions for signal routing requirements.

The MAX4583LEEE operates with a single supply voltage ranging from +1.8V to +5.5V, making it an excellent choice for portable and battery-powered devices. Its low power consumption helps to extend battery life while maintaining a high level of performance. The device features an on-resistance (R<sub>ON) of just 0.5 ohms (typical), which is matched between channels to within 0.1 ohms (typical) and remains flat over the specified signal range, ensuring minimal signal distortion and excellent linearity.

With fast switching times (t<sub>ON of 120ns and t<sub>OFF of 80ns, typical), the MAX4583LEEE is well-suited for applications requiring quick response times, such as sample-and-hold circuits and audio signal routing. The device also boasts a low charge injection of just 10pC (typical), which minimizes transient disturbances in the signal path during switching events.

The MAX4583LEEE is equipped with a digital logic input that controls the switch position. This TTL/CMOS-compatible input allows for easy integration into a variety of digital systems. In addition, the switch's high off-isolation of -83dB (typical at 1MHz) and crosstalk of -86dB (typical at 1MHz) ensure that signals are kept separate and noise is minimized.

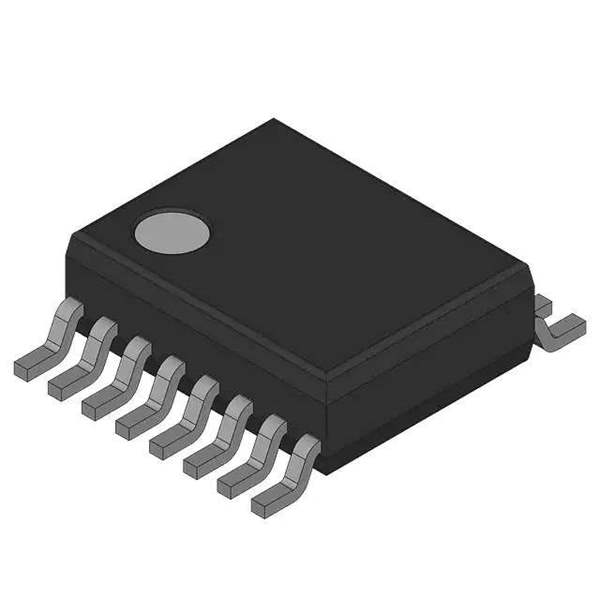

Housed in a 16-pin QSOP package, the MAX4583LEEE is designed to save space on the printed circuit board (PCB) while providing robust performance. This analog switch is ideal for applications in communication systems, data acquisition, audio and video signal routing, and other electronic systems where high-quality signal management is required.

Maxim Integrated's commitment to quality ensures that the MAX4583LEEE analog switch meets the stringent requirements of modern electronic devices, providing a reliable and efficient solution for designers looking to optimize their signal routing with minimal power consumption and superior performance.
