Maxim Integrated MAX3471EUA RS-485/RS-422 Transceiver

The MAX3471EUA from Maxim Integrated is a high-performance, half-duplex transceiver designed for RS-485 and RS-422 communication applications. It is particularly well-suited for industrial, network, and telecom systems where robust data transmission is required over long distances or in noisy environments.

Key Features:

• Data Rate: The device supports data rates up to 10Mbps, making it ideal for high-speed data communication.
• Low Power Consumption: It operates with a low supply current, typically 300µA, and has a 1µA low-current shutdown mode, which is excellent for power-sensitive applications.
• Wide Supply Voltage Range: The transceiver can function over a wide supply voltage range from 3.0V to 3.6V, providing flexibility in various system designs.
• Extended Temperature Range: The MAX3471EUA is operational over an industrial temperature range of -40°C to +85°C, ensuring reliability in extreme conditions.
• High ESD Protection: It features ±15kV ESD protection on the transceiver's input and output pins, safeguarding the device against electrostatic discharge events.
• Integrated Protection: The device includes thermal shutdown and short-circuit protection, enhancing its durability and lifespan.

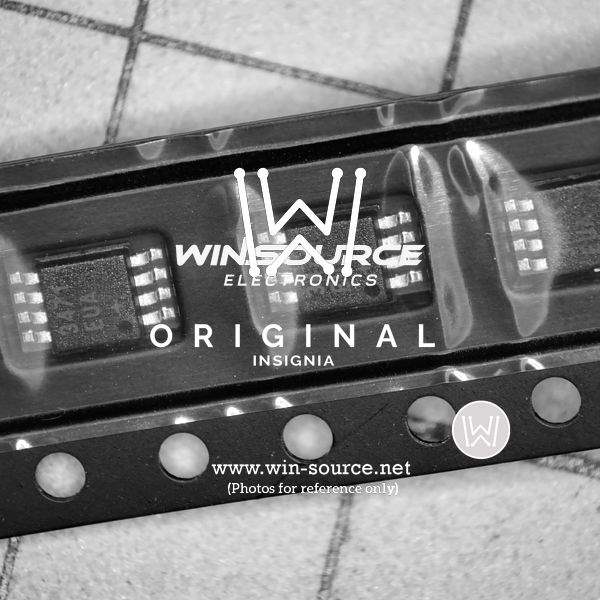

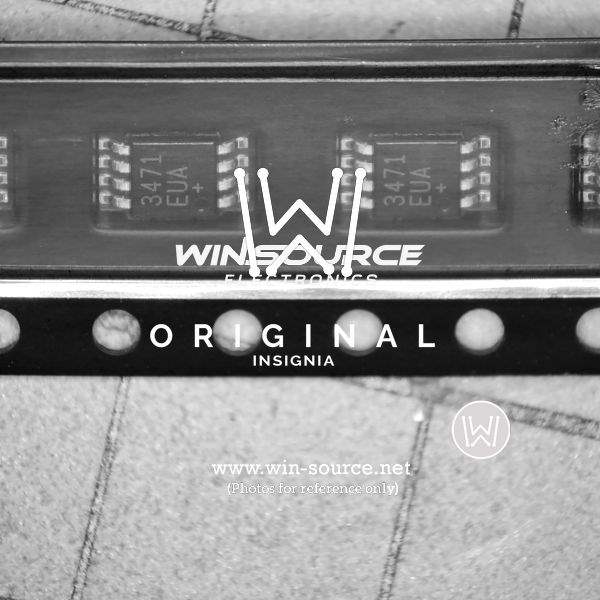

• Small Footprint: The MAX3471EUA comes in a compact 8-pin µMAX package, making it suitable for space-constrained applications.

Applications:

The robust nature of the MAX3471EUA transceiver makes it an excellent choice for a variety of applications, including:

• Industrial Control Systems
• Building Automation
• Network Equipment
• Security Systems
• Point of Sale (POS) Terminals

With its combination of high-speed communication, low power requirements, and strong protection features, the MAX3471EUA from Maxim Integrated is a reliable solution for any system requiring RS-485 or RS-422 interfaces.
