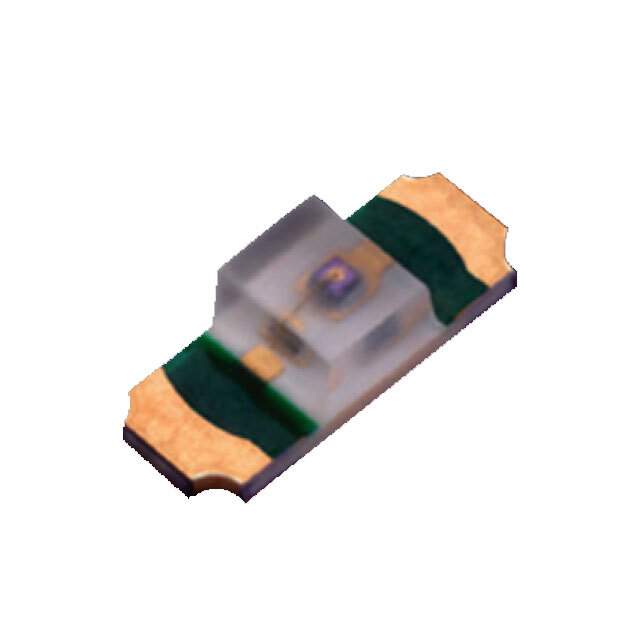

SML-811UTT86C Real Image
Same model may have multiple batches, images only for reference.

SML-811UTT86C

Part No SML-811UTT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED CLEAR 3412 SMD / Red 620nm LED Indication - Discrete 1.95V 1305 (3412 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-811
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 22.4mcd
Lens Style Rectangle with Flat Top
Lens Size 1.25mm x 1.20mm
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 10mA
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 620nm
Package / Case 1305 (3412 Metric)
Supplier Device Package 3412 (1305)
Dimension 3.40mm L x 1.25mm W
Height (Max) 1.20mm
Base Product Number SML-811
Other Names SML-811UTT86CCT,SML-811UTT86CAM,SML-811UTT86CAL,SML-811UTT86CTR,SML-811UTT86CAN,SML-811UTT86CDKR,SML-811UTT86CAI,SML-811UTT86CAH,SML-811UTT86CAK,SML-811UTT86CAJ
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241686-SML-811UTT86C
Ultra Librarian 3D Model Ultra Librarian SML-811UTT86C CAD Model

Description

The Rohm Semiconductor SML-811UTT86C is a red LED indication discrete optoelectronic component.

  • Series: Automotive, AEC-Q101, SML-811 series
  • Packaging: Tape and reel
  • Standard Package: 3,000 units
  • Configuration: Standard configuration
  • Viewing Angle: Not specified
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 22.4mcd
  • Voltage-Forward (Vf): 1.95V
  • Wavelength-Dominant: 620nm
  • Height: 1.20mm
  • Mounting Type: Surface mount, bottom entry
  • Package/Case: 1305 (3412 Metric)
  • Supplier Device Package: 3412 (1305)
  • Dimension: 3.40mm L x 1.25mm W
  • Lens Style: Rectangle with flat top
  • Lens Size: 1.25mm x 1.20mm
  • HTSUS: 8541.41.0000
