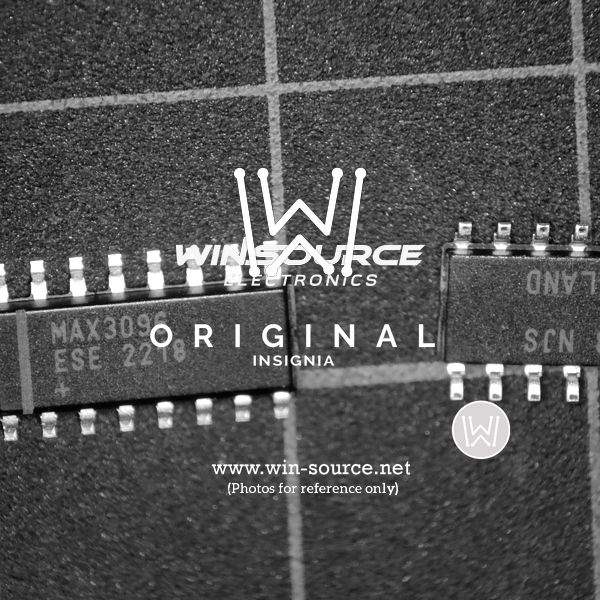

MAX3096ESE+ High-Speed, Low-Power, Quad RS-422/RS-485 Receiver

The MAX3096ESE+ is a robust, high-performance quad RS-422/RS-485 receiver designed by Maxim Integrated to provide reliable communication in industrial, networking, and automation applications. This device is engineered to handle high-speed data transmission while maintaining low power consumption, making it an ideal solution for systems that require efficient data handling capabilities.

Key Features

• High-Speed Operation: Capable of receiving data at rates up to 10Mbps, the MAX3096ESE+ is well-suited for high-speed serial communication protocols.
• Low Power Consumption: With a typical quiescent current of just 1.6mA, this receiver is optimized for power-sensitive applications.
• Wide Supply Voltage Range: Operating from a single 5V supply, it accommodates a variety of system power requirements.
• Fail-Safe Feature: Ensures a logic-high receiver output when inputs are open, shorted, or idle, providing additional reliability in communication systems.
• Hot-Swap Capability: The device includes integrated hot-swap features to allow live insertion and removal without affecting the bus communication.
• Robust Electrostatic Discharge (ESD) Protection: Offers enhanced ESD protection up to ±15kV, safeguarding the device against unexpected voltage spikes.

Applications

The MAX3096ESE+ is versatile and can be used in a wide range of applications, including:

• Industrial Control Systems
• Networked Devices in Building Automation
• Point-of-Sale (POS) Systems
• Data Acquisition Systems
• Telecommunications Equipment

Package and Quality

The MAX3096ESE+ is offered in a 16-pin narrow SO package, providing a compact footprint for space-constrained applications. It also meets stringent industrial quality standards, ensuring reliability and performance even in harsh operating conditions.

With its combination of high-speed communication, low power usage, and robust protection features, the MAX3096ESE+ from Maxim Integrated stands out as a premier choice for designers looking to enhance the reliability and efficiency of their serial data communication systems.
