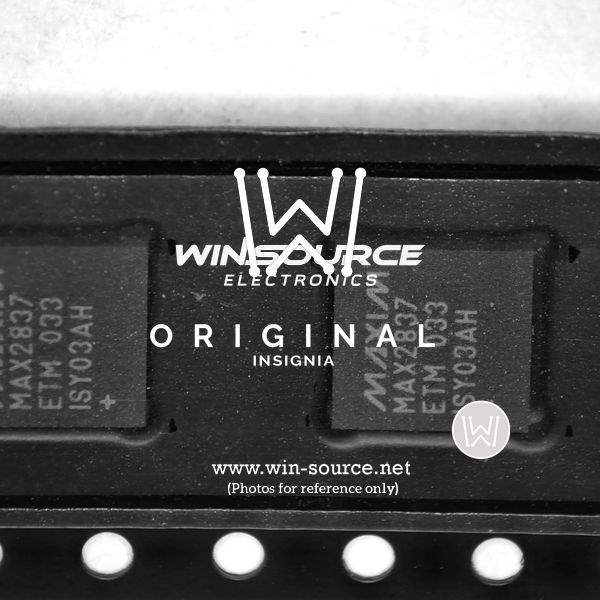

Maxim Integrated MAX2837ETM+T: RF Transceiver for Wireless Applications

The MAX2837ETM+T from Maxim Integrated is a highly integrated, single-chip RF transceiver specifically designed for 2.3GHz to 2.7GHz wireless broadband systems. This versatile transceiver is an ideal solution for a wide range of applications, including wireless local area networks (WLANs), WiMAX, wireless metropolitan area networks (WMANs), and other radio systems requiring high performance and low power consumption.

Key Features

• Fully integrated RF transceiver with a frequency range of 2.3GHz to 2.7GHz.
• Low noise figure and high linearity for excellent receiver sensitivity and dynamic range.
• Integrated fractional-N synthesizer enables fine frequency resolution.
• Programmable baseband filters to accommodate various channel bandwidths.
• Supports Zero-IF and low-IF architectures for design flexibility.
• 1.8V supply voltage and low power consumption enhance battery life for portable devices.
• Small 48-pin TQFN package (7mm x 7mm) saves board space and is ideal for compact designs.

Applications

• Wireless broadband (WiMAX)
• Wireless local area networks (WLANs)
• Wireless metropolitan area networks (WMANs)
• Fixed wireless access systems
• Other 2.3GHz to 2.7GHz RF systems

The MAX2837ETM+T transceiver integrates a complete RF front-end for transmit and receive operations, including a low-noise amplifier (LNA), power amplifier (PA) driver, mixers, and voltage-controlled oscillators (VCOs). The device also features an SPI-compatible interface for easy control and configuration by a microcontroller or processor.

With its high level of integration and performance, the MAX2837ETM+T reduces the need for external components, resulting in reduced system complexity and lower overall cost. Whether you're developing for fixed or mobile wireless applications, the MAX2837ETM+T offers a compact, power-efficient solution that doesn't compromise on performance.

Maxim Integrated's commitment to quality and reliability ensures that the MAX2837ETM+T meets the stringent requirements of wireless communication systems, providing a robust and reliable platform for your RF design needs.
